1. The Cornerstone Role of 304 Stainless Steel in Fastener Engineering
In the global fastener industry, austenitic 304 stainless steel is the backbone material behind countless engineering designs. When engineers or procurement teams talk about “stainless steel bolts” without specifying a grade, 304 is the industry’s default assumption. Its reach spans food processing equipment, medical devices, automotive manufacturing, water treatment systems, power generation, and even aerospace — spanning virtually every industrial and civilian sector.
304 stainless steel shines in indoor and general atmospheric environments, hitting the sweet spot between corrosion resistance and manufacturing cost for standard fasteners. It’s cheaper to source than 316, yet it outlasts ordinary carbon steel by a wide margin in most corrosive conditions. Understanding its chemical makeup, physical properties, and engineering limits helps identify the optimal balance between cost and safety from the outset.
2. Material Science Deep Dive: Chemical Composition, Corrosion Resistance, and Physical Properties of SUS304
2.1 Chemical Composition: The Root of Corrosion Resistance

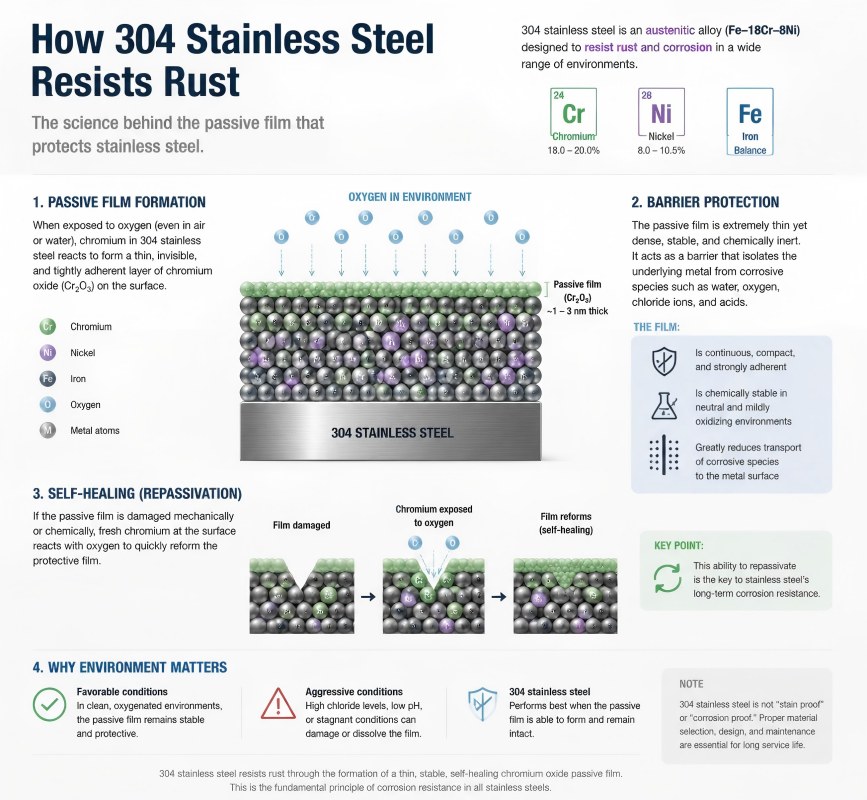

The impressive performance of 304 stainless steel traces back to its carefully balanced chemical composition. In materials science, it’s commonly called “18/8 stainless steel” — roughly 18% chromium (Cr) and 8% nickel (Ni). The high chromium content is what drives its corrosion resistance. When exposed to air or moisture, chromium reacts quickly with oxygen to form an ultra-thin, dense chromium-rich oxide layer — the Passive Film — on the fastener surface. This passive film acts as a barrier, blocking corrosive agents from reaching the underlying metal and protecting against acids, alkalis, salts, and atmospheric attack. Nickel’s job is to stabilize the austenitic crystal structure, giving the material its excellent toughness and formability.
Here’s how the most widely used international standards define the chemical composition of 304 stainless steel for fastener applications:
| Standard | Grade | C | Mn | Si | P | S | Cr | Ni | N | Cu |
|---|---|---|---|---|---|---|---|---|---|---|
| ASTM A276/A276M | 304 (S30400) | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 18.0-20.0 | 8.0-11.0 | – | – |
| ASTM A193/A193M | 304 (S30400) | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 18.0-20.0 | 8.0-11.0 | – | – |
| ASTM A320/A320M | 304 (S30400) | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 18.0-20.0 | 8.0-11.0 | – | – |
| ASTM A493 | 304 (S30400) | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 18.0-20.0 | 8.0-10.5 | ≤0.10 | ≤1.00 |
| JIS G4303 | SUS304 | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 18.0-20.0 | 8.0-10.5 | – | – |
| GB/T 20878-2007 | 06Cr19Ni10 (S30408) | ≤0.08 | ≤2.00 | ≤1.00 | ≤0.045 | ≤0.03 | 18.0-20.0 | 8.0-11.0 | – | – |
Note: All values are maximum allowable percentages (%), with ranges indicating the permitted interval.
A few things stand out in this table:
First, ASTM A276 and JIS G4303 are nearly identical in how they define 304. The only real difference is the nickel upper limit — 11.0% under the American standard versus 10.5% under the Japanese standard. In practice, this gap is negligible and the two grades are fully interchangeable.
Second, ASTM A493 is specifically for cold-heading stainless steel wire — the most directly relevant raw material spec for fastener production. It adds limits on nitrogen (N≤0.10%) and copper (Cu≤1.00%). Copper improves plasticity during cold-heading, while nitrogen boosts yield strength without sacrificing toughness.
Third, ASTM A193/A193M (high-temperature and high-pressure bolts) and ASTM A320/A320M (low-temperature bolts) are the two product standards that come up most often in fastener procurement. Both set identical chemical composition requirements for 304 — the difference lies in their mechanical testing conditions and operating temperature ranges.
In high-volume fastener production, raw material suppliers sometimes tweak the composition within allowable limits to optimize processing. For instance, some specialty wire adds copper (Cu) to improve cold-heading plasticity. Beyond chromium and nickel, SUS304 also contains small amounts of carbon, silicon, manganese, phosphorus, and sulfur — but at such low levels that they don’t meaningfully affect the material’s core corrosion resistance.
2.2 Mechanical Properties: The Hard Numbers for Engineering Selection
Before selecting a fastener material, you need to confirm it can meet the design load requirements. Here are the mechanical properties of SUS304 stainless steel per JIS G4303:
| Property | Value |
|---|---|
| Tensile Strength σb | ≥520 MPa |
| Proof Strength σ0.2 | ≥205 MPa |
| Elongation δ5 | ≥40% |
| Reduction of Area ψ | ≥60% |
| Hardness (Brinell/Rockwell/Vickers) | ≤187 HB / ≤90 HRB / ≤200 HV |
Two things are worth highlighting here. First, the ≥40% elongation and ≥60% reduction of area reflect extremely high plastic deformation capacity — exactly what allows 304 to handle demanding forming processes like cold heading and thread rolling. Second, the ≥520 MPa tensile strength gives plenty of safety margin for most non-extreme engineering connections.
2.3 Key Physical Parameters: Foundation for Thermal Design and Precision Assembly
Beyond mechanical properties, these physical parameters matter a lot in thermal design, electrical engineering, and precision assembly:
| Physical Parameter | Value |
|---|---|
| Density (20℃) | 7.93 g/cm³ |
| Melting Point | 1398~1454 ℃ |
| Specific Heat Capacity (0~100℃) | 0.50 KJ·kg⁻¹K⁻¹ |
| Thermal Conductivity (100℃ / 500℃) | 16.3 / 21.5 W·m⁻¹·K⁻¹ |
| Coefficient of Linear Expansion (0~100℃ / 0~500℃) | 17.2 / 18.4 ×10⁻⁶·K⁻¹ |
| Electrical Resistivity (20℃) | 0.73 ×10⁻⁶ Ω·m²/m |
| Longitudinal Elastic Modulus (20℃) | 193 KN/mm² |
Here’s a practical example of why these numbers matter: 304’s thermal conductivity (16.3 W·m⁻¹·K⁻¹) is much lower than carbon steel’s (around 50 W·m⁻¹·K⁻¹). In high-temperature flange connections, this means 304 bolts transfer heat more slowly and develop steeper temperature gradients. In applications with frequent thermal cycling, factoring the 17.2×10⁻⁶·K⁻¹ linear expansion coefficient into your preload calculations can prevent bolt loosening or overloading from thermal expansion.
The elastic modulus of 193 KN/mm² is slightly lower than carbon steel’s (~200 KN/mm²). For critical joints where precise bolt elongation control matters, this difference needs to be worked into your torque-to-preload conversion.
3. 304 vs SUS304: ASTM, JIS & GB Standard Comparison
In cross-border supply chains, material grade designations are one of the most common sources of confusion in procurement. Asian suppliers typically quote “SUS304,” while North American drawings call for “304” or the UNS designation “S30400.” For all practical engineering purposes, these are the same thing.
To be specific: JIS G4303 defines the SUS304 grade, and ASTM A276 defines 304 (S30400). Both standards align closely on the key chemical limits — max 0.08% carbon, 18.0–20.0% chromium, 8.0–10.50% nickel — so the industry generally treats 304 and SUS304 as interchangeable.
China’s national standard system has its own equivalent. GB/T 20878-2007 designates it as 06Cr19Ni10 (unified number S30408), with chemical composition requirements that align closely with both ASTM and JIS.
When receiving a fastener shipment, reviewing the supplier’s Material Test Certificate (MTC) is the standard way to verify compliance. The key check: do the reported carbon (C), chromium (Cr), and nickel (Ni) values fall within the standard’s specified ranges? That’s your most direct confirmation that the batch is genuinely 304.
4. Manufacturing Performance & Common Misconceptions
4.1 Cold Forming: A Manufacturing Edge for 304 Fasteners
From our shop floor experience, 304 stainless steel’s popularity in fastener manufacturing goes beyond corrosion resistance — it also offers excellent machinability. The material’s high plasticity makes it well-suited for forging, drawing, and bending. For fasteners specifically, cold heading of bolt heads and thread rolling are the core processes, and 304 handles both with ease. In the process, work hardening further increases surface strength.
304 also welds well using common methods like arc welding and gas shielded welding, producing joints with high strength and solid corrosion resistance. When higher plasticity is needed, solution treatment can be used to improve toughness while reducing hardness and strength, adapting the material to applications with more demanding ductility requirements.
4.2 The Magnetic Myth: Why a Magnet Isn’t a Reliable Test
Here’s a misconception that comes up constantly in procurement: the idea that quality austenitic stainless steel must be completely non-magnetic. The truth is, 304 stainless steel already has some magnetic character in its raw state. More importantly, after cold working processes like cold heading, drawing, or thread rolling, the internal crystal structure partially transforms into martensite, making the finished fastener noticeably more magnetic. So using a magnet to verify whether a fastener is “real” 304 simply doesn’t work.
4.3 Low-Temperature Toughness: An Underrated Advantage
304 stainless steel holds up remarkably well at low temperatures. While many carbon steels become brittle and prone to fracture in extreme cold, 304 maintains good strength and toughness. This makes it a solid choice for low-temperature applications like frozen food processing equipment and LNG pipeline flange connections.
5. Limitations of 304 Stainless Steel Fasteners
For all its strengths, 304 stainless steel does have failure risks in certain extreme environments. Knowing these limits is just as important as knowing its capabilities — it’s how you avoid costly engineering failures.
In environments with high chloride ion concentrations — direct seawater exposure, coastal outdoor installations, or high-salinity chemical pipelines — chloride ions can break through 304’s passive film and trigger serious pitting corrosion. In these cases, upgrading to 316 stainless steel, which adds 2.00–3.00% molybdenum (Mo), is usually the smarter call.
For projects involving large structural components with heavy, high-heat welding, 304 can precipitate chromium carbides in the heat-affected zone, degrading corrosion resistance and leading to intergranular corrosion. When heavy welding is unavoidable, 304L — with its lower carbon content (≤0.03%) — delivers more reliable post-weld corrosion performance. We’ll dig into a detailed 304 vs. 304L vs. 316 comparison in an upcoming blog post.
6. Summary: Where 304 Stainless Steel Fasteners Fit

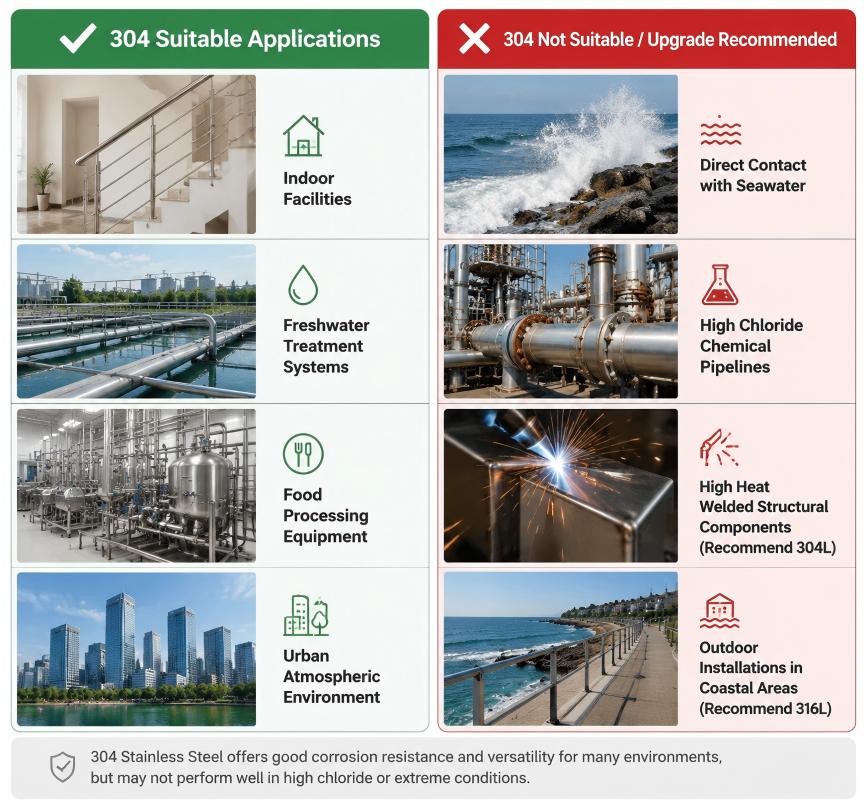

Choosing the right fastener material for a cross-border project is ultimately an ROI decision. For most indoor facilities, freshwater treatment systems, food processing equipment, and standard urban atmospheric exposure applications, 304 stainless steel strikes the right balance between corrosion protection and procurement cost.
A few guiding principles to keep in mind:
- Cutting corners on material grade in high-corrosion environments tends to backfire — the maintenance costs and potential downtime far outweigh any upfront savings.
- Over-specifying premium materials like 316 stainless steel fasteners in routine environments is just burning budget for no real gain.
- When reviewing supplier quotes, always ask for a Material Test Certificate (MTC) that meets ASTM or JIS standards, and check the actual reported values for carbon, chromium, and nickel against the spec limits. That’s your baseline for material compliance.
304 stainless steel’s chemical composition, physical properties, and engineering boundaries together form a clear decision framework. Work within that framework, and you’ll consistently land on the right balance of engineering safety and procurement cost — no matter where in the world you’re sourcing.
