410 Stainless Steel Fasteners: Complete Engineering & Procurement Guide

1.Introduction: Where 410 Fits in Fastener Engineering

In stainless steel fastener selection, 304 and 316 get most of the attention. But when your application demands both corrosion resistance and high hardness — a combination austenitic grades physically cannot deliver — 410 stainless steel fasteners become the engineered solution.

SUS410 (AISI 410) is the world’s most widely used martensitic stainless steel. Its value proposition comes down to three things: heat-treatable hardenability, moderate corrosion resistance, and raw material costs well below austenitic grades. That combination makes 410 the go-to material for steam turbine bolts, pump and valve fasteners, and wear-resistant connectors of all kinds.

This article covers the full technical picture of 410 stainless steel — chemical composition, heat treatment processes, mechanical property data, manufacturing characteristics, and engineering selection boundaries — all grounded in materials science. The goal is to give you a solid technical reference to help you make informed decisions when writing project specs and evaluating suppliers.

2.Materials Science Fundamentals: Chemical Composition and Microstructure of SUS410

2.1Chemical Composition Breakdown

The composition of 410 stainless steel follows a clear engineering logic: achieve “stainless” performance with the minimum necessary alloying elements, while preserving the ability to tune mechanical properties through heat treatment.

2.2The Body-Centered Tetragonal Martensitic Structure

To understand why 410 responds to heat treatment while 304 does not, you need to grasp one basic metallurgical concept.

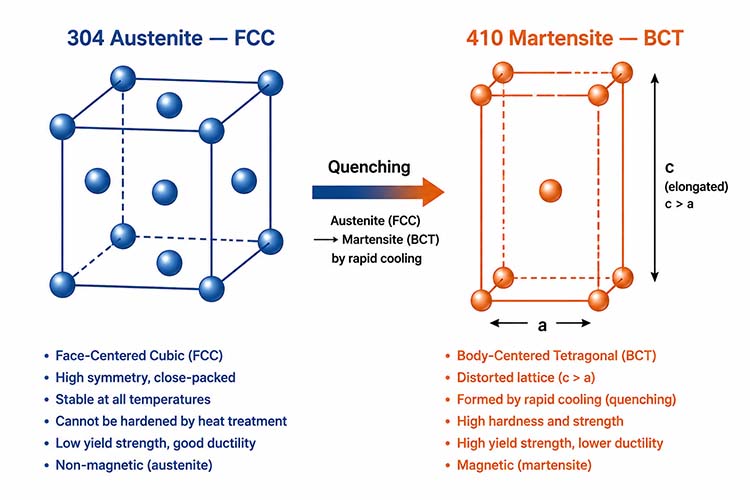

304 stainless steel has an austenitic microstructure with a Face-Centered Cubic (FCC) atomic arrangement. This structure is stable at all temperatures — you cannot change its hardness through heating and cooling cycles.

410 is a different story. At high temperatures it is austenitic, but when rapidly cooled (quenched), the atoms do not have time to rearrange and get locked into a highly distorted Body-Centered Tetragonal (BCT) structure — that is martensite. This distorted lattice is inherently hard and strong, which is the physical reason 410 fasteners can handle high-stress applications.

2.3Why 410 Is Called “Stainless Iron”

In procurement circles, you have probably heard the informal term “stainless iron.” It refers to martensitic and ferritic stainless steels like 410.

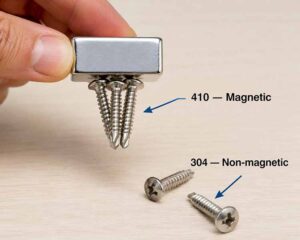

The reason is simple: iron atoms in a BCT structure (martensitic state) can spontaneously magnetize, so 410 is strongly magnetic (permeability 700–1000). In 304’s FCC structure, the magnetic moments of iron atoms cancel each other out, making it essentially non-magnetic.

This has two practical implications:

• In applications requiring magnetic detection or magnetic fixation, 410 has a clear advantage.
• In environments where magnetism is a problem — medical devices, precision sensors — 410 is off the table.

2.4International Grade Cross-Reference

The same material goes by different names in different national standards. This table helps you quickly match equivalent grades in cross-border procurement:

When reviewing a supplier’s Mill Test Certificate (MTC), verifying the grade equivalence is your first line of defense against material mix-ups.

3.Corrosion Protection Mechanism and Performance Limits

3.1How the 12% Chromium Passive Film Works — and Where It Falls Short

Stainless steel stays “stainless” thanks to an ultra-thin chromium oxide passive film (typically just 1–5 nanometers thick) that forms spontaneously on the surface. Once chromium content exceeds roughly 10.5%, this film can self-repair in atmospheric conditions, continuously protecting the base metal.

At 11.5%–13.5% chromium, 410 just clears that threshold. Its passive film can form and provide protection, but its stability and self-repair capability are nowhere near that of 304 or 316 with 18%+ chromium. Think of 410’s corrosion protection as “basic-grade stainless” — good enough for mild environments, but performance degrades rapidly in aggressive media. The passive film formation mechanism on chromium-containing steels is well documented by AMPP (formerly NACE International) — Corrosion Basics.

3.2Environments Where 410 Performs Well

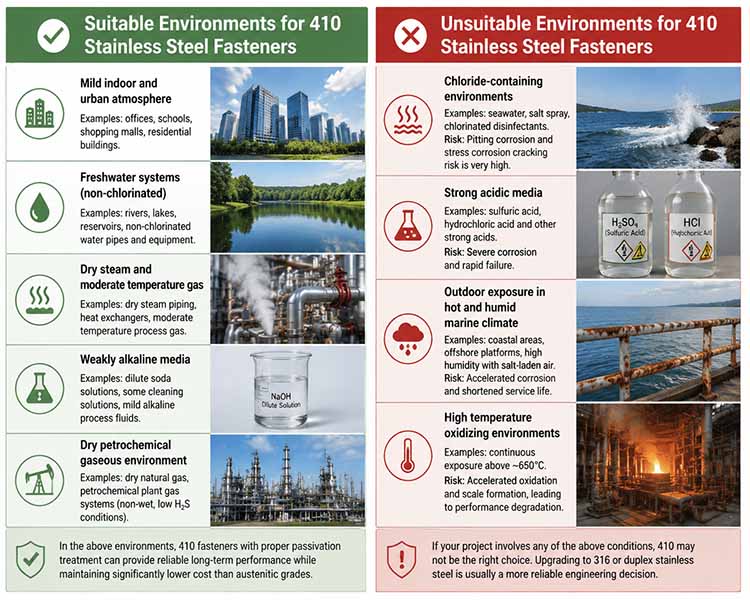

Based on years of supply experience and customer feedback, 410 stainless steel fasteners deliver reliable service life in:

• Mild indoor and urban atmospheric environments
• Fresh water systems (non-chlorinated)
• Dry steam and medium-temperature gases
• Weakly alkaline media
• Dry petrochemical gas environments

In these conditions, 410 fasteners that have been properly passivated typically deliver solid long-term performance at a noticeably lower cost than austenitic grades.

3.3Where 410 Fails

Just as important is knowing where 410 does not belong. We have seen multiple early fastener failures caused by poor material selection. Here are 410’s typical failure scenarios:

If your project involves any of these conditions, 410 is probably the wrong call. Upgrading to 316 or even duplex stainless steel is usually the smarter engineering move.

3.4Surface Treatment Options for Borderline Applications

In edge cases where design constraints force you to use 410 — say, you need high hardness on a tight budget — these surface treatments can extend service life to some degree:

• Passivation: nitric acid or citric acid treatment to remove free iron and strengthen the passive film
• PVD coating: depositing hard thin films like TiN on the fastener surface
• Electroplated chromium or nickel: adding a sacrificial protection layer

4.Heat Treatment: What Sets 410 Apart from Austenitic Stainless Steel

4.1Why 410 Can Be Heat Treated and 304 Cannot

This is one of the most common questions we get in technical consultations. The answer comes down to fundamental differences in carbon content and crystal structure.

304 contains 8%–10.5% nickel, which stabilizes the austenitic structure across all temperatures. No matter how you heat and cool 304, it stays soft austenite — heat treatment will not harden it (only cold working will).

410 has very little nickel (≤0.75%) and relatively high carbon. At high temperatures it is austenitic, but rapid cooling triggers a martensitic transformation. That transformation involves severe lattice distortion, which directly drives a major jump in hardness and strength.

4.2How Quenching + Tempering Affects Fastener Mechanical Properties

The standard heat treatment for 410 fasteners has two core steps:

1. Hardening / Quenching: heat to the austenitizing temperature of 925°C–1010°C, hold, then rapidly cool in oil or air. The material reaches maximum hardness in this as-quenched condition, but is extremely brittle.
2. Tempering: reheat the quenched part to a lower temperature (typically 150°C–370°C or 590°C–650°C), hold, then slow cool. This relieves internal stress and restores toughness while retaining most of the hardness.

4.3Hardness vs. Toughness at Different Tempering Temperatures

Here is how tempering temperature typically affects 410’s mechanical properties:

Choosing the right heat treatment condition is fundamentally a trade-off between hardness and toughness. For fastener applications, too much hardness raises the risk of brittle fracture; too little hardness defeats the purpose of using 410 in the first place.

4.4Why Heat Treatment Condition Matters for Procurement Specs

Here is a practical point procurement managers cannot afford to miss: two batches of “410 stainless steel bolts” in different heat treatment conditions can have mechanical properties that differ by more than 3×.

When writing procurement specs, always specify:

• Heat treatment condition (annealed / quenched and tempered / specific tempering temperature)
• Target hardness range (e.g., 28–34 HRC)
• Acceptance criteria (ASTM A276 or equivalent)

5.Mechanical Properties and Physical Parameters

5.1Key Mechanical Properties

After quenching + tempering, tensile strength can reach 700–1600 MPa depending on the tempering temperature selected. For a complete datasheet including elevated-temperature properties, refer to AISI Type 410 Stainless Steel on MatWeb.

5.2Key Physical Parameters

5.3What These Numbers Mean for Your Design

A few parameters stand out for fastener engineers:

Elastic Modulus (200 GPa): Nearly identical to carbon steel, so you can use standard carbon steel bolt formulas for elongation and preload calculations — no correction needed.

Coefficient of Thermal Expansion / CTE (11.4 × 10⁻⁶ /K): Significantly lower than austenitic stainless steel (304 is ~17.2 × 10⁻⁶ /K). In thermal cycling applications, the expansion mismatch between 410 bolts and carbon steel flanges is much smaller, which means less preload relaxation over time. This is a key reason 410 is often preferred for medium-temperature equipment like steam pipeline flanges.

Thermal Conductivity (24.9 W/m·K): About 1.5× that of 304 (16.2 W/m·K). In high-temperature fastening applications, better thermal conductivity means heat dissipates more quickly along the bolt.

6.Fastener Manufacturing Process Characteristics

6.1Cold Heading and Hot Forging of 410

In fastener manufacturing, forming the bolt head is the first critical step. Compared to 304, 410 behaves quite differently in cold forming.

304 has excellent ductility and work-hardening characteristics, making it ideal for cold heading. With 410, it is more nuanced: in the annealed condition, cold headability is moderate and standard cold heading operations are feasible. But because martensitic stainless steel is less ductile than austenitic grades, complex head geometries are harder to cold form.

For large-diameter or complex-head 410 fasteners, hot forging (forming after heating to 1100°C–1200°C) is generally the more reliable manufacturing approach. After hot forging, a full heat treatment cycle — annealing or quench-and-temper — is required to hit the target mechanical properties.

6.2Quality Control Checkpoints on the Production Line

From our production experience, here are the key quality risks to watch in 410 fastener manufacturing:

1. Quench cracking: The volume expansion and internal stress from martensitic transformation during quenching make 410 prone to micro-cracks at stress concentration points — thread roots, head-to-shank transition zones. Controls include proper preheating, managed cooling rates, and immediate tempering after quenching.
2. Decarburization: At high temperatures, surface carbon can react with the furnace atmosphere and be lost (decarburization). The resulting decarburized layer reduces surface hardness and cuts fatigue life. Protective atmosphere or vacuum furnaces are the standard preventive measure.
3. Weldability limitations: If your application involves welding (e.g., weld studs), be aware that 410 welds less cleanly than austenitic stainless steel. Preheat (150°C–300°C) and post-weld heat treatment are both necessary for reliable weld joints.

7.Typical Applications and Selection Decisions

7.1High-Hardness Applications

410 stainless steel fasteners are best suited for applications that require both moderate corrosion resistance and high hardness or strength:

• • Steam and gas turbines: bolts and studs in high-temperature steam environments that need to hold their mechanical properties at elevated temperatures
  • Petroleum refining equipment: flange connections in lower-corrosivity sections like atmospheric distillation towers
  • Pumps and valves: valve stem nuts and packing gland bolts where wear resistance matters
  • Hydropower equipment: high-strength connections in fresh water environments
  • Cutting tools and shearing equipment: applications that leverage 410’s hardness directly
