1. Introduction: Why Bolt Manufacturing Matters

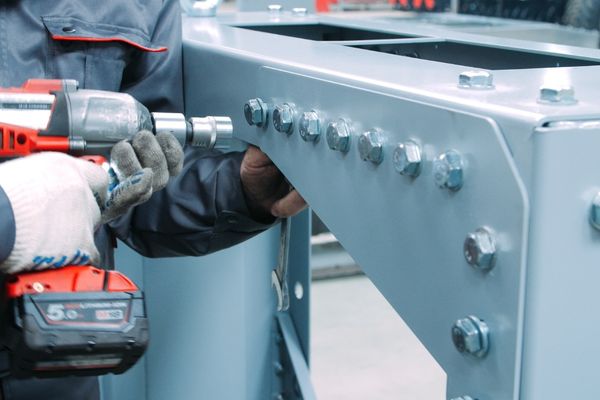

Bolts are the key feature in modern engineering, showing up in countless applications across different fields. They might seem simple, but they’re integral to the way things hold together—from car frames to skyscraper supports, and the parts inside an aircraft engine. A single faulty bolt could cause major issues like system breakdowns, expensive repairs, or worse, endangering safety. The production of bolts is far from trivial, it’s crucial to understand how they’re made for those involved in their sourcing, inspection, or engineering. This knowledge helps procurement professionals assess suppliers with more insight, allows engineers to factor in realistic tolerances when designing, and ensures better quality control practices.
Check out our breakdown of real-world failure cases in the article Screw Breakage Explained, see why each step in bolt production matters more than you might think.
2. Raw Materials: What Bolts Are Made Of
Every bolt of good quality is tied up first with the material. Like carbon steel, which is inexpensive and useful in bolts in construction or cars, this material’s strong enough, but gets rusty easily, so it’s covered or coated. The stainless steel like AISI 304 that gives you rust resistance and looks pretty nice too, so you can find it in food handling or on boats. The alloy steels like 4140 or 4340 are made for heavy jobs, placing where parts heat up or need to be super strong under stress.
For technical datasheet, refer to link for mechanical properties, temperature resistance, and use cases for various steel types.
3. Step-by-Step Bolt Manufacturing Process
Producing a high-quality bolt is far from a simple affair. It’s a multi-stage process involving precise mechanical operations, metallurgical control, and quality assurance protocols. In this section, we’ll walk through each major step involved in bolt manufacturing, from raw wire to finished fastener, with a focus on the key decisions that influence strength, reliability, and cost.
3.1 Wire Drawing

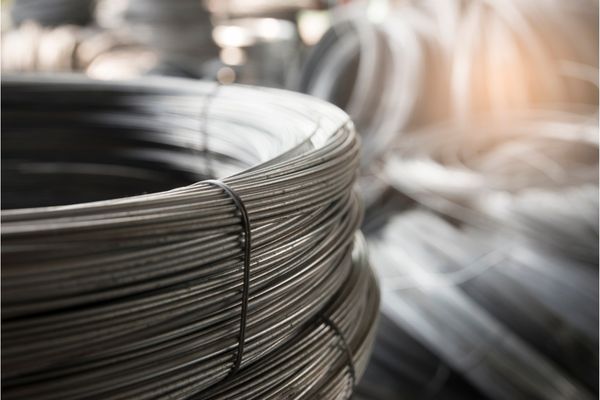

The journey begins with large coils of steel rod—typically 5.5 to 12 mm in diameter. These rods are not yet in the shape or finish required for bolt manufacturing. To achieve the necessary size and surface condition, the material is passed through a series of progressively smaller dies in a process called wire drawing.
This cold deformation process compresses the rod and reduces its diameter, simultaneously increasing its tensile strength. It’s crucial that the wire emerges from this process with uniform diameter and smooth surface texture, as inconsistencies can compromise later steps like thread formation or heat treatment.

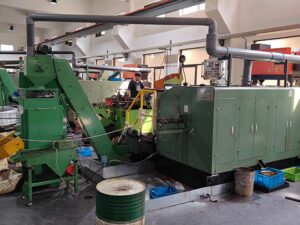

3.2 Cold Heading or Hot Forging
Once the wire is prepared, the next step is to form the bolt head, the part gripped by tools. This can be done via either cold heading or hot forging, depending on the bolt’s size, material hardness, and required strength.
Cold Heading is used for small to medium-sized bolts. The wire is cut to length, then struck with immense force in a die to displace metal into the shape of the head—usually hexagonal or square. This process takes place at room temperature and is highly efficient, with minimal material waste.
Hot Forging, on the other hand, involves heating the cut wire segment (also called a blank) to temperatures over 1000°C. This makes the metal more malleable and suitable for large-diameter bolts or high-strength materials. The bolt head is then formed using a forging press.
See this comprehensive guide from MachineMfg on cold vs hot forging processes and their industrial applications.
3.3 Thread Rolling
With the bolt’s shank and head in place, the next crucial step is threading. Threads can be produced by two main methods: cutting and rolling, but high-quality manufacturers overwhelmingly prefer thread rolling.
Thread rolling is a displacement process. The blank is pressed between two dies that imprint the thread profile by forcing the metal to flow. This strengthens the bolt significantly, as the material’s grain flows around the threads rather than being interrupted by cutting.
Cut threads, while faster to produce in small batches, tend to leave micro-cracks and stress concentrations.
Refer to Thread Failure Types in our technical case study archive.

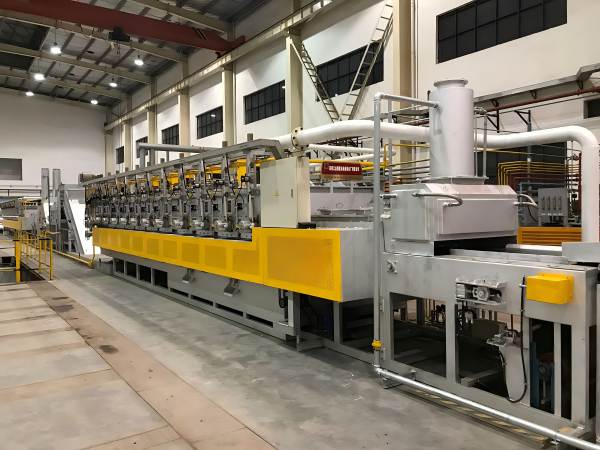

3.4 Heat Treatment
Bolts often require heat treatment to achieve the desired balance between hardness and toughness. The most common processes are:
- Quenching: Heating the bolt to a high temperature (typically around 850–900°C) and rapidly cooling it in oil or water to increase hardness.
- Tempering: Reheating to a moderate temperature (around 200–650°C) to reduce brittleness introduced by quenching.
This treatment transforms the internal structure of the steel, giving the bolt both strength and ductility.
Post-treatment, hardness is usually verified using the Rockwell or Vickers scale, while tensile strength is checked against international standards like ASTM F568M or ISO 898.
3.5 Surface Finishing
The final stage in bolt production involves surface treatment to enhance corrosion resistance, appearance, and friction characteristics. Common methods include:
- Zinc Electroplating: Adds a thin protective zinc layer to resist rust.
- Black Oxide Coating: Creates a matte black finish with light corrosion protection, often used in automotive applications.
- Dacromet (Zinc-Flake Coating): Offers superior corrosion resistance without hydrogen embrittlement risk.
In many environments like marine, industrial, or outdoor, proper surface treatment can be the difference between years of reliable performance and early failure.
4. Quality Control & Testing

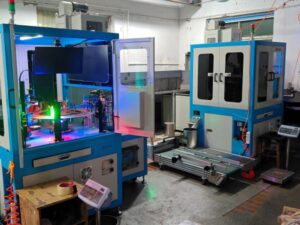

In the fastener industry, quality control (QC) is integrated into every stage of the manufacturing process. Bolts are subjected to a series of rigorous tests to ensure that they meet or exceed industry standards.
4.1 Testing Procedures:
- Dimensional Checks: The first test in any QC protocol is ensuring that the bolt’s dimensions (length, diameter, thread pitch, etc.) fall within specified tolerances. This is usually carried out with calipers, micrometers, and thread gauges, which ensure that each part fits its intended application without excessive play or tightness.
- Tensile Testing: Tensile strength testing is critical for assessing how much load the bolt can handle before it deforms or fractures. This is measured by stretching the bolt until it breaks and recording the maximum force it withstands, providing key insights into its suitability for specific applications.

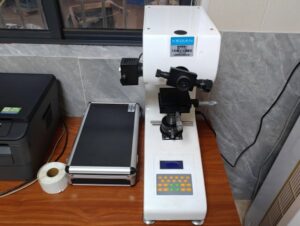

- Hardness Testing: To confirm that the heat treatment has been successful, hardness tests (using methods like Rockwell or Vickers scales) are performed. The results help verify the material’s durability and ability to withstand wear and tear under stress.

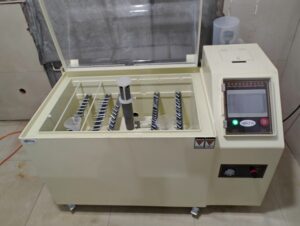

- Coating and Corrosion Resistance: Bolts are often exposed to environmental elements, so coatings like zinc plating or Dacromet are tested for corrosion resistance.
4.2 Testing Standards
- Bolts must meet several international standards such as ISO 898-1, and ASTM F568M, depending on the application. These standards ensure that bolts can withstand the mechanical stresses they’ll encounter and maintain structural integrity over time.
Refer to our case studies on Thread Failure Types.
5. Sustainability & Innovations in Bolt Manufacturing
As sustainability takes on a greater role in more and more industries, bolt makers have started shifting, people are trying to lower energy, cutting down on material waste, a lot of manufacturers are turning to recycling materials, like recycled steel or other metals. Closed-loop lubrication setups are showing up more often. Also, the automated manufacturing is optimizing production efficiency, reducing defects, and lowering the overall environmental impact.
6. Final Thoughts: What It Means for You as a Buyer or Engineer
By far, you’ve grasped something often neglected: a bolt is not merely a metal rod with threads. It encapsulates the depth of metallurgical advancements, mechanical design principles, and precise manufacturing practices.
For a buyer, understanding the production process of bolts equips you to ask insightful questions before finalizing a contract. For an engineer, it’s key to choosing the appropriate fastener to handle the exact load, avoiding the pitfalls of overengineering or under engineering, and collaborating with manufacturers to hit critical safety margins.
In our facility, we combine years of technical mastery, meticulous quality checks, and a transparent approach to manufacturing in every batch we create. Each bolt, from the initial wire coil to its final inspection, tells a story of precision, reliability, and consistency.
