Introduction
If you ever worked with machinery or construction projects, most likely you have encountered hex socket screws. They are those helpful little fasteners that have a hexagonal recess to be tightened with the help of an Allen wrench. But have you ever stopped to think why they would appear shiny, dark, and even in yellow color? Such variety depends on the surface treatments.
These are not for ‘show and tell’ for the screws but are very important in view of better performance, durability, and even corrosion resistance. The proper type of surface treatment might make all the difference between rust and wear in given conditions.
In the article, we will review common surface treatments for hex socket screws, giving special attention to carbon steel and stainless steel types. This article is for anyone who may wish to select screws for an industrial application or simply wants to understand how the screw works.
1: Overview of Hex Socket Screws
1.1 What Are Hex Socket Screws?
Hex socket screws, sometimes called Allen screws or Hex socket screws, are types of threaded fasteners that have a recessed hexagon in their head. They allow torque to be applied with an Allen wrench to allow a tight and secure fit. The recessed drive reduces the possibility of stripping while allowing the use of screws where there is not enough room for the head above the surface.
1.2 Materials Used
Carbon Steel
Carbon steel is one of the raw materials in wide use for hex socket screws because of its strength and inexpensiveness. It contains carbon as the major alloying element, which increases hardness and, hence, tensile strength. Carbon steel tends to rust; therefore, surface treatments are usually employed to improve corrosion resistance.
Stainless Steel
Stainless steel screws own superior corrosion resistance because adding at least 10.5% chromium forms a passive oxide layer on top, protecting the material underneath against rusting. Thus, stainless steel can be used in applications involving exposure to moisture or even chemicals.
1.3 Common Applications and Environments
The hex socket screws owing to their all round satisfactory performances are finding ample uses in all sectors.

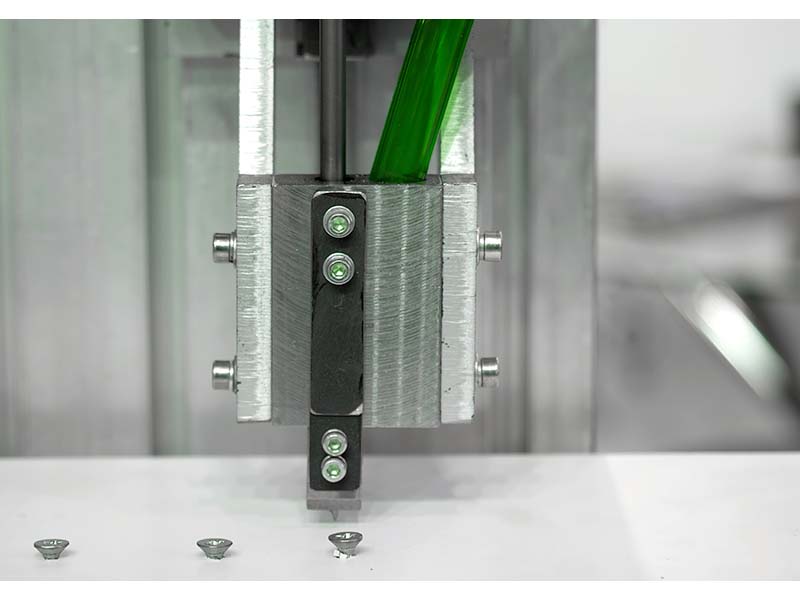

Industrial Machinery: Found in an assembly of equipment that is strongly and tightly fitted together.
Automotive Industry: Used in motors, gearboxes, and suspension; therefore, areas requiring high strength.
Construction and Engineering: Ideal for applications involving structure since these can support loads.
2: Surface Treatments for Carbon Steel Hex Socket Screws
Surface treatment improves the properties of carbon steel screws, including some of the most desired benefits: improved corrosion resistance, greater hardness, and aesthetic appeal.
2.1 Zinc Plating

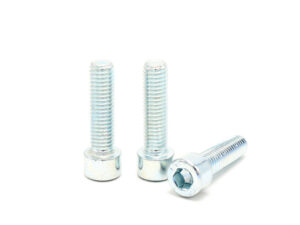

2.1.1 Blue-White Zinc Plating
Blue-white zinc plating is the most general type of electroplating, which involves depositing a thin layer of zinc onto the surface of the screw, giving it that bright, shiny silver look.
Benefits include basic corrosion resistance and an attractive finish.
Applications: Indoor applications in which machinery is subjected to no serious condition.

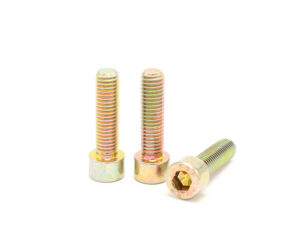

2.1.2 Yellow Zinc Plating
Benefits: Much better corrosion resistance compared to blue-white zinc plating.
Applications: When both an attractive appearance and fair corrosion resistance are to be achieved.
2.2 Hot-Dip Galvanizing
The screw is coated by being dipped in a bath of hot zinc producing thick, strong coatings.
High-Protective Level: when conditions are extreme in very high corrosion.
Application: Very suitable for outdoor construction jobs in bridges and towers.
If you want to know more about electro galvanizing and hot-dip galvanizing, you can read the pdf <Zinc Coatings>.

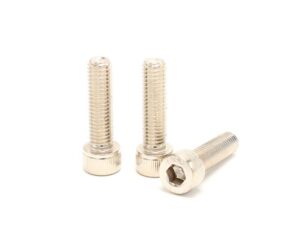

2.3 Nickel Plating
Nickel plating involves applying a nickel layer to the screw surface, increasing hardness and wear resistance.
Advantages: include increased resistance to corrosion relative to zinc plating and brightness of luster.
Typical Uses: Applications of high wear and for decoration.
If you want to know more about nickel electroplating, you can read the pdf <Nickel Plating>.
2.4 Black Oxide
Black oxide treatment creates a very thin oxide layer on the metal surface.
Purpose: Coating for minimal corrosion resistance and reduction of light reflection.
Suitable Environments: Indoor applications where the possibility of moisture exposure is low.
If you want to know more about Black Oxide, you can read the pdf <Black Oxide>.
2.5 Dacromet Coating (Zinc Flake Coating)
Dacromet coating was based upon zinc and aluminum flakes applied in a water-based solution.
Corrosion Resistance: Very good, especially in the salt-spray atmosphere.
Application Scenarios: Widely used in auto parts and marine equipment.
If you want to know more about Dacromet Coating, you can read the pdf <Dacromet Coating (Zinc Flake Coating)>.
3: Surface Treatment for Stainless Steel Hex Socket Screws
Passivation involves the removal of free iron from the surface, enhancing the natural oxide layer.
3.1 Passivation
Process: Screws are submerged in an acid solution, usually either nitric or citric acid.
Benefits include an increased corrosion resistance, hence a reduction in contamination.
Application Considerations: Chemical treatment equipment, purifying apparatus in the food industry-places where cleanliness is highly desired.
If you want to know more about Passivation, you can read the pdf <Passivation>.
4: Matching Screw Types with Surface Treatments
Except for choosing the size or material on a hex socket screw, other than that, there are some other important factors which will be the type of screw head and surface treatment since these two factors directly decide working performance, durable life, and appropriateness in an application. Now, various screw types with various surface treatments put together satisfy the demands of many industries and environments.
4.1 Common Types of Hex Socket Screws
What follows is a partial list of some generalized variations of hex socket screw types. For more information about any of the following variations, see “Common Types and Selection Guide for Hex Socket Screws.”
| Screw Type | Description | |
 |
Hexagon Socket Head Cap Screws | Standard screws with hexagon socket for general purposes. |
 |
Hexagon Socket Thin Head Cap Screws | Screws with reduced head height for tight spaces. |
 |
Hexagon Socket Button Head Screws | Screws for appearance applications – round head. |
 |
Hexagon Socket Button Head Screws with Collar | Button head screws provide a collar allowing increased bearing surface. |
 |
Hexagon Socket Head with Serrated Flange Screws | Screws Having an Inboard Serrated Flange Cannot Be Loosened. |
 |
Hexagon Socket Countersunk Head Screws | Screws with a flat top, usually sitting countersunk into the material. |
 |
Hexagon Socket Head Shoulder Screws | Screws without a threaded shoulder. |
 |
Hexagon Socket Head Cap Screws with Waisted Shank | Screws with a smaller diameter of the shank. |
 |
Hexagon Socket Flat Head Screws | Screws with a head allowing countersinking. |
 |
Hex Socket Large Flat Head Screws | Screws with a wider head for dispersed load distribution. |
4.2 Matching Surface Treatments with Screw Types
Different applications and usages in various conditions have their peculiar combination of screw type and surface treatment. The table below shows for what screw type, which surface treatment is available, including explanations on usage scenarios, industry, and environmental conditions.
| Surface Treatment | Applicable Screw Types | Explanation |
| Galvanized | All types of hex socket screws | Galvanizing is the general treatment for resistance to corrosion by a protective zinc coating applied to all types of screws used in construction, outdoor installation, and wherever prevention against rusting is required. |
| Nickel Plated | All except Hexagon Socket Head Cap Screws with Waisted Shank | Nickel plating provides better corrosion resistance with a bright finish. Due to its relatively high cost and limited demand in the marketplace, this surface treatment will not be widely adopted for the most part for the above-mentioned types of screws. For applications whose screws are parts that play an important role in the product’s appearance, such as consumer electronics or decorative hardware, nickel plating would be a great choice. |
| Black Oxide | All types of hex socket screws | Black oxide provides only a slight degree of corrosion resistance. It imparts a uniform black color and reduces light reflection. For use indoors in tool or equipment applications when cosmetics or glare reduction is significant. All fastener types are available in black oxide. |
| Dacromet | All except Hexagon Socket Head Cap Screws with Waisted Shank, Hexagon Socket Flat Head Screws, Hexagon Socket Head Shoulder Screws, and Hex Socket Large Flat Head Screws | Dacromet coating is among the best in corrosion resistance, especially in very harsh environments such as marine and industrial, but coating thickness may interfere with tight tolerances that certain screws require-those requiring special screws such as shoulder screws or those with flush mounting installation. |
| Hot-Dip Galvanizing | All except Hexagon Socket Head Cap Screws with Waisted Shank, Hexagon Socket Flat Head Screws, Hexagon Socket Head Shoulder Screws, and Hex Socket Large Flat Head Screws | Hot-dip galvanizing provides hard conditions to resist corrosion for screws in highly harshly exposed situations, such as outdoor structural applications or heavy machinery. This thicker coating interferes with threading and fit; thus, it is not acceptable in service where precision screws or flush finishes are required. |
| Passivation | All types of stainless steel hex socket screws | Passivation improves the inherent corrosion resistance of the stainless steel screws without affecting the dimensions. It is applicable to all types of screws, specifically for food-processing industries, medical devices, and pharmaceutical applications where the hygiene and integrity of the material are of prime importance. |
5: The Importance of Surface Treatment on Performance and Longevity
5.1 Enhancing Corrosion Resistance

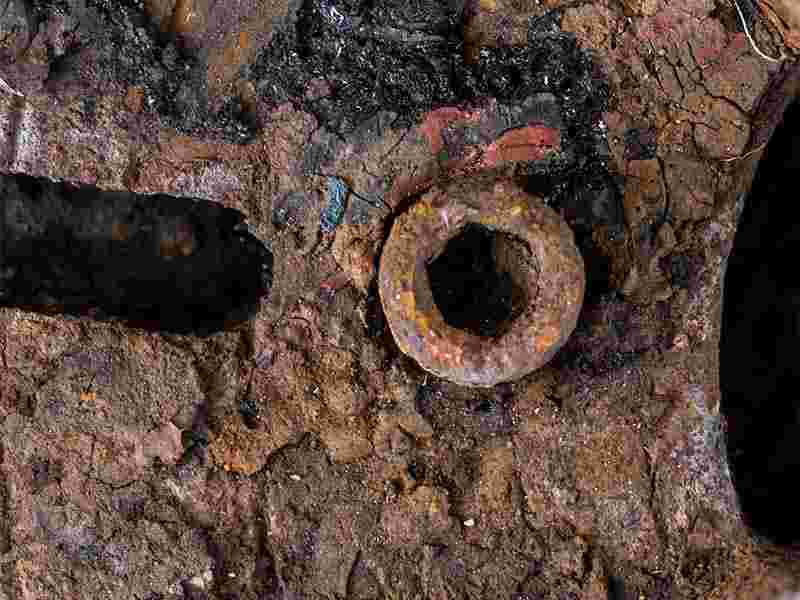

The problem with corrosion, however, is much bigger than an eyesore: it totally compromises the integrity of the whole assembly: Screws that rust can seize up and make maintenance either impossible or difficult; at worst, they can fail completely, which with related safety risks.
Surface treatments like galvanizing and passivation tend to be protective barriers. Galvanizing simply works by adding a layer of zinc, which will corrode sacrificially, instead of the underlying steel. These can be useful in outdoor structures-such as fencing or playground equipment-that are constantly exposed to moisture.
For marine applications or even coastal environments, more drastic solutions are required. Dacromet coatings are way more saline-resistant. In a recently published article by the Journal of Coatings Technology and Research, it was mentioned that fasteners coated with Dacromet lasted considerably longer in salt spray tests than conventional coatings against corrosion.
Surface treatment will contribute to preventing rust and corrosion, prolonging screws’ service life or assembled products’ for safety and reliability.
5.2 Improving Mechanical Properties
Surface treatments can also result in improvements of mechanical properties related to wear resistance and hardness. Treatments that impart a black oxide result in an attractive, uniform color and also produce a lubricating action that reduces the coefficient of friction during the relative motion between the screw and material-a consideration of significance when operating at high assembly line speeds.
In applications requiring very high strength, surface treatments can prevent galling and resistance to shear forces. For example, nickel plating increases surface hardness, reducing the possibility of thread galling during installation.
Improved mechanical properties decrease the breakdown of screws under stress, hence an important factor in critical applications involving aviation and heavy machinery.
5.3 Impact on Installation and Maintenance
One very often fails to remember that another advantage of the right surface treatment is an easier installation. A smoother surface reduces torque applied for driving a screw hence speeding up and easing the physical burden of an assembly task. It is of extreme value in the mass production, at which thousands of screws are installed every day.
There are resistant surface treatments for maintenance against corrosion and wear that avoid the need for the replacement of parts, reducing stoppages in production and cutting the cost of maintenance. In the case of industries like the electronics industry, screws with appropriate coatings avoid oxidation that could interfere with electrical connections.
The right surface treatment eventually enhances not only the performance of the screw but also the efficiency of the whole operation.
6: Conclusion
Selection of the proper surface treatment of hex socket screws should go beyond mere looking toward enhancement of corrosion resistance, improvement of mechanical properties, and easiness in installation and maintenance. Proper selection could be a great contributor to extending a longer life span for them and the products they are used in, therefore saving costs and further improving the general safety aspects.
In my view, consider environmental conditions and specific mechanical needs and demands when practicing to pay off in the longer run, be it a construction structure that is exposed to the outdoors or the tiniest precision component in high-performance machinery; the surface treatment of your screw can never be an afterthought.
Remember that a well-chosen screw holds and it keeps things together under the conditions it will see. Making informed decisions about surface treatments is one small step that pays off in big ways.
