1 Introduction to High-Strength Bolts
1.1 Standards for High-Strength Bolts
In international trade and overseas projects, high-strength bolts typically adhere to the following major standards to ensure that their materials, mechanical properties, and heat treatment meet the necessary technical requirements:
ISO 898-1
This standard is widely used globally (especially in Europe and other international projects) and specifies mechanical properties such as tensile strength, yield strength, hardness, elongation, and torque coefficient for carbon steel and alloy steel fasteners.

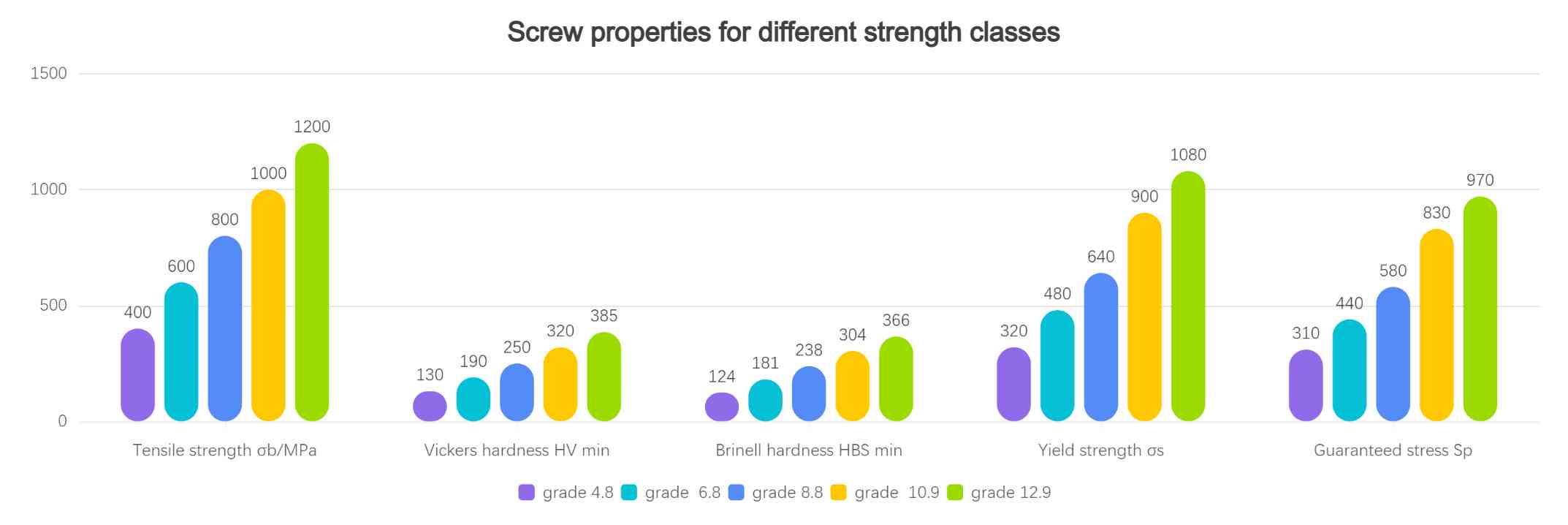

Common strength grades in ISO 898-1 include 8.8, 10.9, and 12.9, which are crucial references for the production and acceptance of high-strength bolts.
ASTM A490
Applicable to alloy steel structural bolts, with a minimum tensile strength typically required to reach 150 ksi (about 1034 MPa).
These bolts are commonly used in steel structure connections requiring high strength, such as bridges, high-rise buildings, and large machinery.
ASTM A354
This standard requires bolts to have superior mechanical properties for use in harsh environments.
It is often used in projects where safety factors and durability are critical, such as heavy machinery and certain special equipment.
These standards provide detailed technical requirements for material grades, mechanical properties, heat treatment, etc. Compared to common bolts of grade 4.6, 8.8, or 10.9, high-strength bolts have higher strength grades (such as grade 12.9), requiring stricter process control and material selection to meet the demands of high loads and high safety factors.
1.2 Performance Requirements of High-Strength Bolts
The “high strength” of high-strength bolts is not only reflected in their tensile strength but also in comprehensive requirements for yield strength, elongation, impact toughness, and other indicators. Generally speaking, in the most common high-strength bolt grades in the U.S., the minimum tensile strength of bolts can reach over 1000 MPa, and some alloy steel bolts can even reach a range of 1200–1400 MPa. Furthermore, to ensure reliable connections in variable working environments, high-strength bolts should possess the following performance characteristics:
Toughness and Ductility
In extreme environments or under dynamic or impact loads, the material’s toughness and ductility are often more critical than strength alone. Particularly for bolts required to work in low-temperature environments (such as -20°C or -40°C), it is generally required that high-strength bolts maintain a Charpy impact value of at least 27J–40J at the corresponding temperature to prevent brittle fracture; in polar or offshore wind power fields, test requirements may be further increased to -50°C or lower.
Additionally, for common grade 10.9 or 12.9 bolts, the elongation (A5) is typically required to reach 8%–14%, and the reduction of area (Z) should usually be above 40%–50% to ensure sufficient plastic deformation ability and safety margin. In short, to maintain reliability under harsh conditions for an extended period, it is insufficient to focus solely on high strength—toughness and ductility are equally essential.
Fatigue Life
In environments with frequent vibrations or alternating loads, bolts with insufficient fatigue resistance are prone to fatigue cracks at the root of the threads or at stress concentration areas, ultimately leading to fracture.
Corrosion Resistance
For high-strength bolts used in marine engineering, petrochemical installations, or humid environments, surface treatments or special alloy elements such as chromium (Cr), nickel (Ni), etc., are typically required to enhance corrosion resistance.
1.3 Applications of High-Strength Bolts
High-strength bolts, with their high load-bearing capacity, good toughness, and long service life, are often used in the following applications:
Large steel structures: such as bridges, heavy-duty factories, wind turbine towers, and the framework of high-rise buildings
Automotive and aerospace industries: key connections for engines, chassis, and aircraft structural components

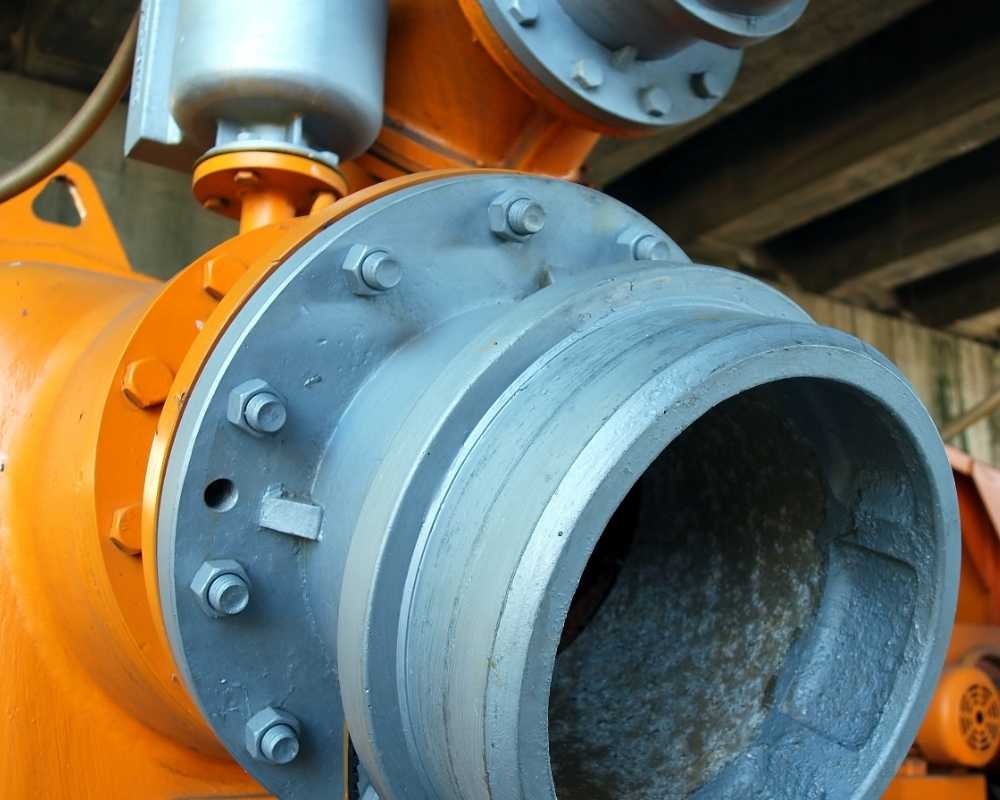

Petroleum, petrochemical, and power industries: pressure vessels, pipeline flange connections, valves, and nuclear power equipment
Heavy equipment and machinery: mining machinery, military equipment, shipbuilding, and other high-load components
It is worth noting that “high strength” does not mean that the highest strength should always be pursued. If a project operates in an extremely low-temperature environment, aside from strength, it is essential to carefully consider the bolt’s impact toughness and material composition. If the project is exposed to high temperatures and corrosive media, alloy steels with corresponding high-temperature or corrosion-resistant properties should be selected. Therefore, during the bolt selection and procurement phase, it is crucial to comprehensively evaluate the product’s working conditions and mechanical performance requirements rather than solely pursuing the “highest strength.”
2. Materials for High-Strength Bolts
The quality of raw materials is the foundation for determining the quality and performance of bolts. For high-strength bolts, alloy structural steels such as 42CrMo, B7, and 40CrNiMo are typically chosen. These materials offer excellent mechanical properties under high temperatures, high loads, or impact loads, and can also cater to low-temperature toughness or corrosion resistance to varying extents.
2.1 Common Steel Grades for High-Strength Bolts
Here are several typical steel grades and their corresponding international/U.S. designations:
42CrMo (commonly used international alloy steel grade, corresponding to U.S. ASTM B7 composition):
It has high strength and hardenability, with tensile strength typically ranging from 1100–1300 MPa or higher, suitable for manufacturing grade 10.9 or 12.9 bolts.
B7 (U.S. ASTM A193 alloy steel grade):
Similar in composition to 42CrMo but with more precise control of molybdenum (Mo) content. B7 is primarily used in high-temperature and high-pressure environments, especially in petrochemical equipment flange connections.
40CrNiMo (commonly used in ASTM A320 L7 standards, etc.):
With the addition of various alloy elements, this steel exhibits better low-temperature impact toughness. It can operate at temperatures as low as -40°C or lower, making it more common in wind power, offshore engineering, and other applications requiring resistance to low-temperature shock.
2.2 Performance Differences Between Steel Grades and Their Causes
Taking 42CrMo and B7 as examples, both are medium-carbon quenched and tempered steels (carbon content generally in the range of 0.38–0.45%), and both contain certain amounts of chromium (Cr) and molybdenum (Mo), with similar overall composition ranges. However, through precise control of trace elements, especially the differences in molybdenum (Mo) and manganese (Mn) content, materials may exhibit noticeable performance differences. For instance:
Mo Content: If the molybdenum content of B7 is strictly controlled between 0.18–0.20%, while that of 42CrMo is at the lower end (0.15–0.17%), B7 will have advantages in hardenability and microstructure uniformity, thus performing better in impact toughness (e.g., reduction of area) tests.
Mn Content: Manganese enhances strength and hardenability in certain ranges but excessive manganese can increase the risk of temper brittleness. When combined with other elements like Mo, the “defects” caused by manganese can be partially mitigated, thus maintaining good toughness while ensuring strength.
2.3 Influence of Various Elements on Steel Properties (Table)
Here’s a simplified table illustrating the influence of common alloy elements on the overall properties of steel:
| Element | Main Role | Effect on High-Strength Bolt Performance |
| C (Carbon) | Increases strength, hardness, decreases plasticity, and toughness | Excessive carbon content increases brittleness, while moderate carbon content helps achieve desired strength levels |
| Cr (Chromium) | Enhances wear resistance, corrosion resistance, and hardenability | Higher chromium content improves bolt stability in high-temperature and corrosive environments |
| Mo (Molybdenum) | Improves hardenability, anti-temper brittleness, and high-temperature strength | Helps refine grains and enhances low-temperature impact toughness and wear resistance, crucial in B7 steels |
| Mn (Manganese) | Improves hardenability, strength, and wear resistance; excessive content may lead to grain growth and temper brittleness | Needs to be balanced with other elements to improve mechanical properties while avoiding increased brittleness |
| Ni (Nickel) | Improves low-temperature toughness and corrosion resistance, increases strength | Particularly beneficial in low-temperature environments such as wind power and marine engineering, enhancing impact toughness |
| V (Vanadium) | Refines grain structure, increases strength and toughness | When used in appropriate amounts, can improve fatigue life, excessive use can make processing more difficult |
In conclusion, material selection for high-strength bolts must be closely tied to the application environment. When high toughness and ductility are required, elements like Mo and Ni should be increased, and impurities such as sulfur and phosphorus should be strictly controlled. For standard environments that focus only on high strength without considering toughness, steels like 42CrMo can suffice. However, to balance high strength and resistance to low-temperature shock, materials like 40CrNiMo or CrNiMo multi-alloy systems are preferred.

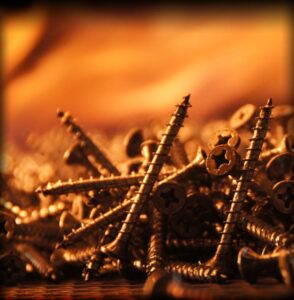

3. Heat Treatment of High-Strength Bolts
Heat treatment is a crucial step influencing the performance of bolts. By heating, holding, and cooling the material, the internal microstructure can be altered, further improving strength, ductility, and impact toughness. In actual production, high-strength bolts typically undergo “tempering treatment” (quenching + tempering), with additional treatments (e.g., dehydrogenation tempering or surface treatment) as needed.
3.1 Heat Treatment Process for High-Strength Bolts
Generally, the heat treatment process for alloy structural steel high-strength bolts is as follows:
Preheating: Heat the bolt to approximately 600–700°C to relieve internal stresses and reduce the risk of cracking due to excessive temperature gradients.
Austenitizing: Hold the bolt at a temperature of 900°C or higher to fully transform the core and surface into austenite and allow alloy elements to dissolve into the matrix.
Quenching: Rapidly cool the bolt to room temperature or lower (typically using oil quenching or polymer water cooling), causing the microstructure to predominantly transform into martensite, significantly improving hardness and tensile strength.
Tempering: Temper the bolt at an appropriate high temperature (e.g., 500–650°C) to gradually convert excessive hardness into a more ductile tempered structure, preventing brittle fracture during use.
3.2 Quenching Process
The core of quenching involves austenitizing and rapid cooling. High-strength bolts require at least 90% of the core to transform into martensite to meet the required strength and toughness standards. In actual production, heating and holding times must be controlled based on the bolt’s effective diameter, material composition, and furnace temperature uniformity. If the heating time is insufficient or the cooling rate is too slow, the core may retain pearlite or other low-strength structures, resulting in subpar mechanical properties.
3.3 Tempering Process
Appropriate high-temperature tempering (typically in the range of 500–650°C) is especially critical for high-strength bolts. The main functions of tempering include:
Relieving thermal stresses: During rapid cooling in quenching, a large temperature gradient within the bolt can cause high internal stresses. Without tempering, cracks may form during subsequent use.
Stabilizing the microstructure and dimensions: Tempering transforms a small amount of residual austenite into martensite, allowing carbide precipitates within martensite to redistribute more evenly, thus enhancing toughness and stabilizing dimensions.
Reducing brittleness: Martensitic structures in high-strength conditions are usually brittle; tempering can form tempered sorbite or tempered troostite, which provide better toughness and ductility.
3.4 Heat Treatment Precautions
Furnace temperature uniformity: Whether using box furnaces or multi-purpose furnaces, the temperature in all heating zones must be uniform to ensure consistent microstructure transformation throughout the bolt.
Carbon potential control: For materials requiring carburizing or carbon retention, controlling carbon potential and oxygen probe readings is crucial to prevent decarburization or carbon excess.
Surface and core hardness distribution: For large bolts, special attention should be given to the cooling rate difference between the core and surface. Insufficient cooling in the core may lead to pearlite or bainite, which will affect overall strength.
Avoiding hydrogen embrittlement: During acid cleaning, electroplating, or phosphating treatments, hydrogen atoms may penetrate the metal and cause hydrogen embrittlement. To address this, dehydrogenation tempering at 190–230°C is typically performed after surface treatments.
If you want to learn more about heat treatment you can watch the videos on the Matallurgy Data channel.
4. Quality Inspection and Procurement of High-Strength Bolts
4.1 Performance Testing
Common testing items for high-strength bolts include:
Tensile test: Measures tensile strength, yield strength, elongation, reduction of area (Z value), and other indicators to verify compliance with standards like ASTM A490, A354, etc.
Hardness test: Typically uses Rockwell hardness (HRC) or Brinell hardness (HB) to quickly assess heat treatment quality.
Impact test: For bolts requiring low-temperature impact toughness, such as those used in wind power, offshore engineering, or extreme cold regions, Charpy impact tests are performed at temperatures of -20°C, -40°C, or even lower to ensure no brittle fracture occurs in cold environments.
Metallographic analysis: Observes the microstructure of the bolt cross-section (checking for martensite, bainite, ferrite, grain coarseness, etc.) to assess heat treatment quality and material uniformity.
Surface defect detection: Inspects for cracks, folds, surface decarburization, or other defects in threads, heads, or rods.
4.2 Standardization and Certification
International certifications or standards help procurement personnel quickly assess the reliability and compliance of products. Common certifications and standards include:
ISO 898-1 (Mechanical properties of bolts)
ISO 6157 (Surface defect inspection requirements for fasteners)
ASTM A193 / A320 / A354 / A490, and other specific standards for different application environments
ISO 9001 quality system certification
Manufacturers with these certifications and a complete testing system typically have mature production management and quality control systems, ensuring consistency in bulk supply.
4.3 Procurement Suggestions for High-Strength Bolts
Clarify usage environment and requirements: Before procurement, specify the working environment (temperature range, corrosive environment, shock load conditions) and prioritize performance indicators (such as tensile strength, impact toughness).
Select reliable manufacturers: High-strength bolt production requires high-quality materials, equipment, and processes. It is recommended to choose manufacturers with a complete production line, strict quality control, and technical expertise to reduce risks in later installation and maintenance stages.
Review material and heat treatment process reports: Confirm raw material grades, material composition inspection reports, heat treatment methods (tempering temperature, quenching media, etc.), and performance test reports with the supplier to ensure consistency across batch products.
Testing and sampling: For projects with critical loads or high potential risks, consider small-batch trials or random inspections before making large-scale purchases to minimize potential risks.
Customization needs: If special high-strength bolts or bolts for use in specific environments (such as low-temperature impact below -40°C, high-temperature or high-corrosive environments) are needed, communicate with the manufacturer for customized alloy compositions or heat treatment plans to meet actual requirements.
5. Conclusion
High-strength bolts play an indispensable role in modern industries, construction, and transportation. Their high tensile strength, excellent impact toughness, and long fatigue life provide safe and stable connections in large structures and high-load applications. However, high performance is often accompanied by more stringent process and material requirements. From material selection (the ratio of C, Cr, Mo, Ni, etc.) to heat treatment process formulation (appropriate austenitizing temperature, quenching cooling methods, and tempering temperature), to quality testing and standard certifications (such as ASTM, ISO, etc.), professional and systematic control is necessary. Only by paying attention to the details throughout the production chain can we produce truly reliable high-strength bolts.
If you are a procurement manager or business owner looking to optimize engineering quality with high-strength bolts or ensure safe and stable operation of equipment under extreme conditions, please feel free to contact us. We not only have years of professional production experience and technical expertise, but we also have extensive practical cases in material selection, heat treatment, and quality inspection. Whether you need ASTM A490 or A354 Grade BD structural bolts, or B7-grade alloy steel bolts, we can provide the highest quality products and services tailored to your needs.
In pursuing high strength, don’t forget to consider toughness, ductility, and environmental adaptability. Ultimately, only by fully understanding the material characteristics, heat treatment principles, and application scenarios of bolts can the most reasonable and economical choices be made in actual engineering projects.
