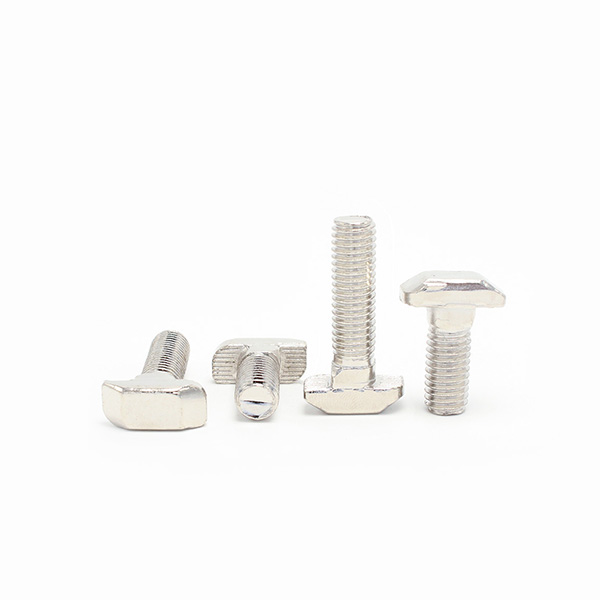

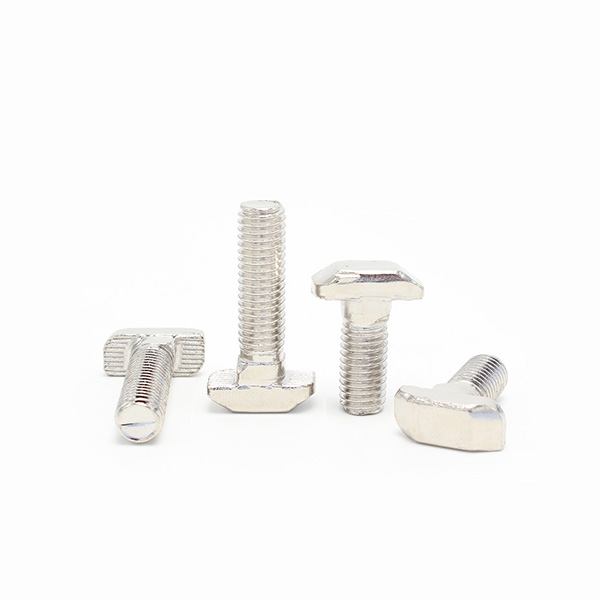

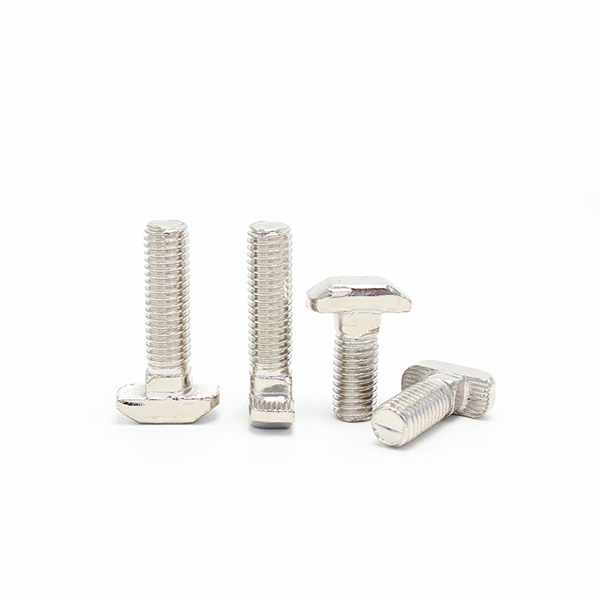

Aluminum Profile T-type Screw
The T-head design of the aluminum T-screw allows it to be precisely inserted into the T-slot of the aluminum profile, providing a safe and flexible tightening method.
Product Technical Parameters
| ●Material: Carbon Steel and Stainless Steel |
| ●Surface Treatment: Galvanized, Nickel Plated, Black Oxide |
| ●Metric Strength Grades: 4.8, 8.8 |
| ●Metric Thread Diameter: M5 ~ M8 |
| ●Metric Thread Length: 10 ~ 50
|
Products Categories
Get A Free Quote
Product Description of Aluminum Profile T-type Screw
- Function and use: These screws can be easily inserted into the T-slot of the aluminum profile, thus facilitating easy assembly and flexible adjustment of the structural frame and components.
- Application: It is widely used in the construction of machine frames, workbenches, conveying systems and industrial automation equipment requiring modularity and flexibility.
- Needs solved: Simplify the installation process, achieve rapid component adjustment and repositioning, significantly improve assembly efficiency, and perfectly meet the need for design flexibility without fixing.
Wanhong fasteners offers advanced aluminum profile T-screws in a wide range of sizes and materials designed to fit a wide range of industrial applications.
Data Sheet of Aluminum Profile T-type Screw

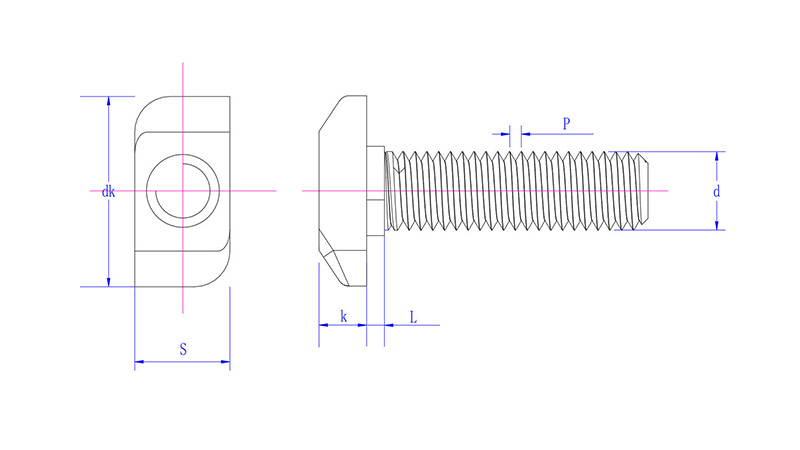

Aluminum profile T-type screw Dimensions Chart
| Aluminum Profile | 20 | 30 | 30 | 40 | 45 |
| d | M5 | M6 | M8 | M8 | M8 |
| s | 6 | 8 | 8 | 8 | 8.5 |
| dk | 10.3 | 15.5 | 15.5 | 18 | 19 |
| k | 3.5 | 5 | 5 | 5 | 5.5 |
| L | 1.8 | 2.2 | 2.2 | 3 | 4 |
| P | 0.8 | 1 | 1.25 | 1.25 | 1.25 |
