Cheese Head Screws with Cross Recess
These screws have a cylindrical head with a cross slot and fit a Phillips screwdriver for easy fastening and installation.
Product Technical Parameters
| ●Material: Carbon Steel and Stainless Steel |
| ●Surface Treatment: Galvanized, Nickel Plated, Black Oxide |
| ●Metric Strength Grades: 4.8 |
| ●Metric Thread Diameter: M3 ~ M8 |
| ●Metric Thread Length: 6 ~ 60
|
Product Description of Cheese Head Screws with Cross Recess
- Function and use: The cross recessed cheese head screw has a cylindrical head with a flat top and vertical sides and is designed to provide a large bearing surface to optimize load distribution. The cross slot design is easy to tighten or loosen with a Phillips screwdriver.
- Applications: Widely used in machinery, electrical, automotive and assembly fields, requiring reliable fastening solutions.
- Needs solved: They provide powerful features for frequent assembly and disassembly while maintaining fastening integrity.
Wanhong Fasteners offers high quality cross recessed cheese head screws in a variety of sizes and materials to meet a wide range of industrial needs.
Data Sheet of Cheese Head Screws with Cross Recess

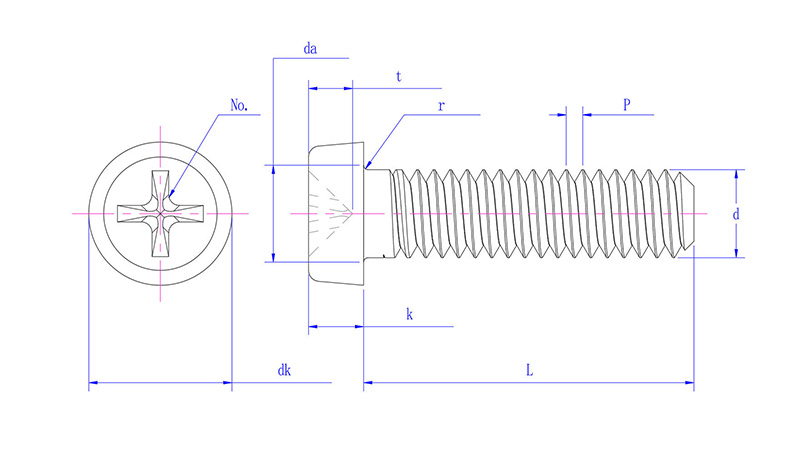

Cheese head screws with cross recess Dimensions Chart: Based on ISO 7048
| (mm) | M3 | M3.5 | M4 | M5 | M6 | M8 |
| P | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 |
| dk max | 5.5 | 6 | 7 | 8.5 | 10 | 13 |
| dk min | 5.32 | 5.82 | 6.78 | 8.28 | 9.78 | 12.73 |
| da max | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 |
| k max | 2 | 2.4 | 2.6 | 3.3 | 3.9 | 5 |
| k min | 1.86 | 2.26 | 2.46 | 3.12 | 3.6 | 4.7 |
| rmin | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 |
| No. | 2 | 2 | 2 | 2 | 3 | 3 |
| t min | 0.86 | 1.15 | 1.45 | 2.14 | 2.25 | 3.73 |
| t max | 1.43 | 1.73 | 2.03 | 2.73 | 2.86 | 4.36 |
Get A Free Quote Now !
Get durable, high-quality fasteners for your specific needs. Submit an inquiry to receive a customized quote!
