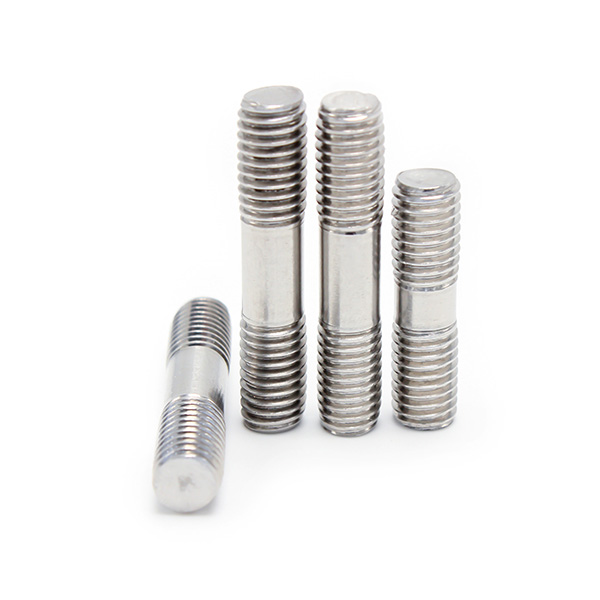

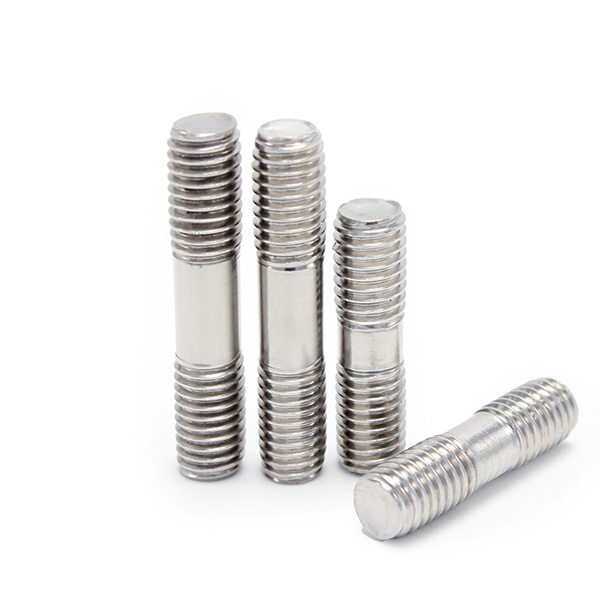

Double End Studs
Double end studs are screws with threads at both ends, designed for reliable tightening applications that require precise alignment and high strength.
Product Technical Parameters
| ●Material: Carbon Steel and Stainless Steel |
| ●Surface Treatment: Galvanized, Nickel Plated, Black Oxide, Hot Dip Galvanizing, Dacromet |
| ●Metric Strength Grades: 4.8, 8.8, 10.9, 12.9 |
| ●Metric Thread Diameter: M3 ~ M16
|
Products Categories
Get A Free Quote
Product Description of Double End Studs
- Function and use: The stud is used as a connector between two parts and is tightened by nuts at both ends to ensure the stability and accurate alignment of the assembly.
- Applications: Widely used in machinery, automotive, construction and equipment manufacturing industries, especially where disassembly and reassembly, maintenance and precise connection of components are required.
- Needs solved: They provide a strong and reliable connection that withstands tension and shear forces for easy maintenance and reduced downtime.
Wanhong Fasteners offers high quality double end studs in a wide range of sizes and materials to meet diverse application needs.
Data Sheet of Double End Studs
Double End Studs Dimensions Chart
| b | 6 | 6 | 8 | 10 | 13 | 16 | 20 | 23 |
| d | M3-M5 | M3-M8 | M3-M8 | M3-M10 | M3-M16 | M3-M16 | M3-M16 | M3-M16 |
| L | 16 | 20 | 25 | 30 | 35|40 | 45|50 | 55|60 | 65|70 |
| b | 26 | 33 | 36 | 40 | 43 | 46 | 50 | 50 |
| d | M3-M16 | M3-M16 | M3-M16 | M3-M16 | M3-M16 | M3-M16 | M3-M16 | M4-M16 |
| L | 75-90 | 100 | 110 | 120 | 130 | 140 | 150-250 | 250-500 |
