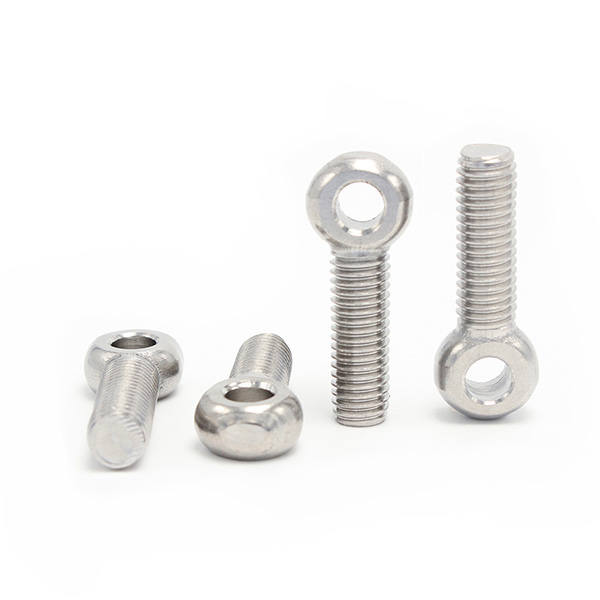

Eye Bolts
The ring bolt has a threaded shaft and eye head to provide a strong connection point for lifting, rigging or anchoring applications.
Product Technical Parameters
| ●Material: Carbon Steel and Stainless Steel |
| ●Surface Treatment: Galvanized, Nickel Plated, Black Oxide, Hot Dip Galvanizing, Dacromet |
| ●Metric Strength Grades: 4.8, 8.8, 10.9, 12.9 |
| ●Metric Thread Diameter: M5 ~ M30 |
| ●Metric Bolt Length: 20 ~ 200
|
Product Description of Eye Bolts
Function and Usage: Ring bolts are designed to create strong lifting or anchoring points. The eye head makes it easy to attach ropes, cables or chains.
Application Fields: These ring bolts are commonly used in mechanical, construction, Marine and hardware applications where reliable load-bearing connections are critical.
Needs Solved: They provide a safe and robust method of connecting lifting equipment to ensure safe operation and stability during lifting or fixing operations.
Wanhong Fasteners offers high quality ring bolts in various sizes and materials to meet different industrial needs.

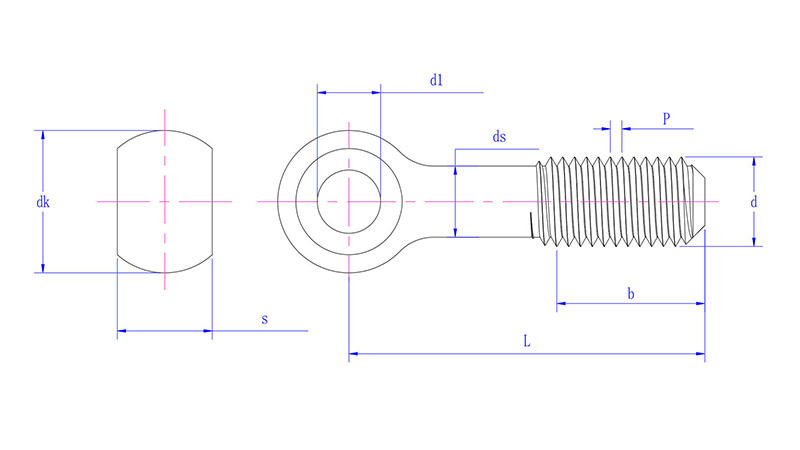

Eye Bolts Dimensions Chart: Based on DIN 444
| (mm) | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 | M27 | M30 |
| P | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 | 3 | 3.5 |
| d1 max | 5.03 | 6.03 | 8.036 | 10.036 | 12.043 | 16.043 | 18.043 | 22.052 | 25.052 | 28.052 |
| d1 min | 5 | 6 | 8 | 10 | 12 | 16 | 18 | 22 | 25 | 28 |
| dk max | 12 | 14 | 18 | 20 | 25 | 32 | 40 | 45 | 50 | 55 |
| dk min | 10.9 | 12.9 | 16.9 | 18.7 | 23.7 | 30.4 | 38.4 | 43.4 | 48.4 | 53.1 |
| s max typeA | 8 | 9 | 11 | 14 | 17 | 19 | 24 | 28 | 30 | 34 |
| s min typeA | 7.52 | 8.52 | 10.3 | 13.3 | 16.3 | 18.16 | 23.16 | 27.16 | 29.16 | 33 |
| s max typeB,C | 6 | 7 | 9 | 12 | 14 | 17 | 22 | 25 | 27 | 30 |
| s min typeB,C | 5.88 | 6.85 | 8.85 | 11.82 | 13.82 | 16.82 | 21.79 | 24.79 | 26.79 | 29.79 |
| ds max | 5 | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 27 | 30 |
