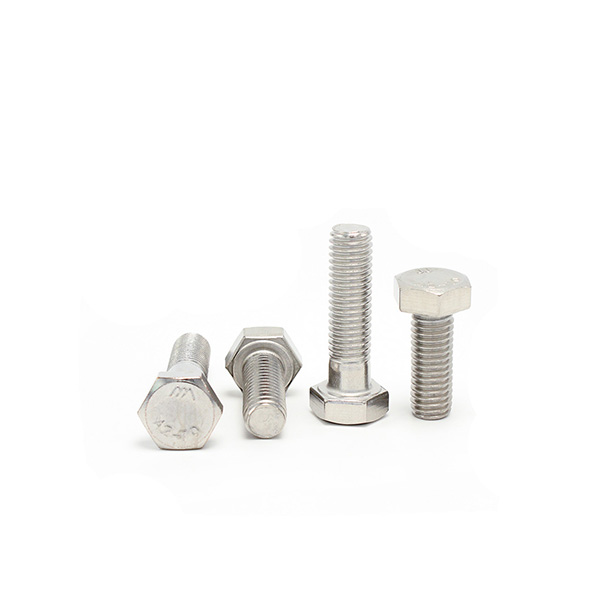

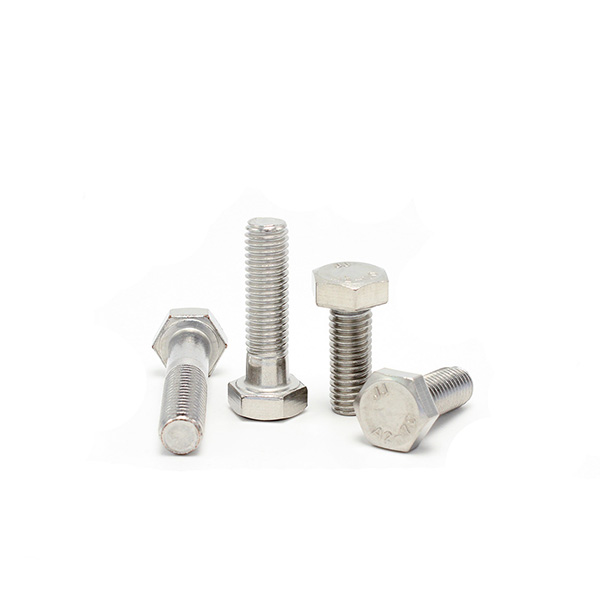

Hexagon Head Bolts
With its hexagonal head design, the outer hexagonal bolt is easy to tighten with the help of a wrench, ensuring a strong connection in a variety of applications.
Product Technical Parameters
| ●Material: Carbon Steel and Stainless Steel |
| ●Surface Treatment: Galvanized, Nickel Plated, Black Oxide, Hot Dip Galvanizing, Dacromet |
| ●Metric Strength Grades: 4.8, 8.8, 10.9, 12.9 |
| ●Metric Thread Diameter: M3 ~ M24 |
| ●Metric Bolt Length: 4 ~ 300
|
Hexagonal Bolts Product Description
- Function and Usage: This fastener is designed for easy and strong connection of elements. The hexagonal head structure makes sure smooth combination with standard wrenches for simple tightening up, considerably increasing torque output and tightening results.
- Application Fields: Widely used in the building, equipment and vehicle industries, fasteners are vital for their strong and reputable performance.
- Needs Solved: The essential to ensuring structural stability and safety is to provide dependable securing throughout assembly.
Wanhong Fasteners provides high quality hex bolts in a wide range of sizes and products developed to meet the particular requirements of a wide variety of commercial applications.
Hexagonal Bolts Product Data Sheet

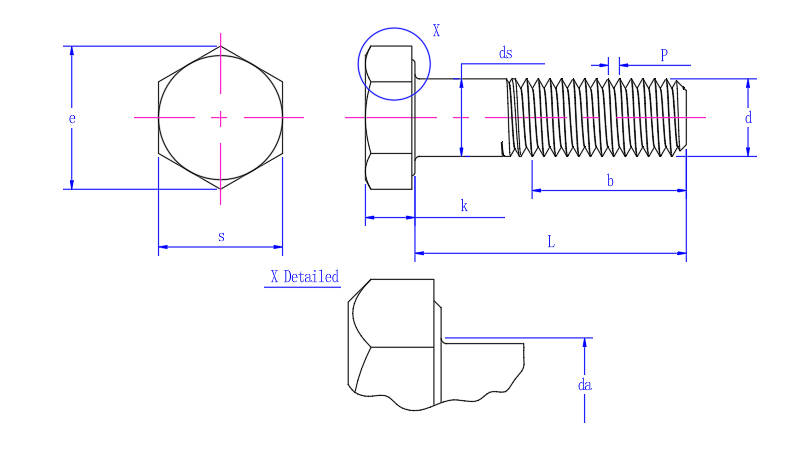

Hex Head Bolt Dimensions Chart: Based on DIN 931
| (mm) | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 |
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 |
| da max | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 |
| ds max | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
| ds min | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | 21.67 | 23.67 |
| e min | 6.01 | 7.66 | 8.79 | 11.05 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 30.14 | 33.53 | 35.72 | 39.98 |
| k max | 2.12 | 2.92 | 3.65 | 4.15 | 5.45 | 6.58 | 7.68 | 8.98 | 10.18 | 11.72 | 12.72 | 14.22 | 15.22 |
| k min | 1.88 | 2.68 | 3.35 | 3.85 | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.28 | 12.28 | 13.78 | 14.78 |
| s max | 5.5 | 7 | 8 | 10 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 |
| s min | 5.32 | 6.78 | 7.78 | 9.78 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.67 | 29.67 | 31.61 | 35.38 |
Equivalent Standards:GB /T 5782 | ISO 4014 | DIN EN ISO 4014 | EN 24014 | UNI 5737 | NF E 25-112 | IS 1364-1
Some of the standards listed above may be considered approximately equivalent. If there are differences in dimensions, please adhere to the original standard

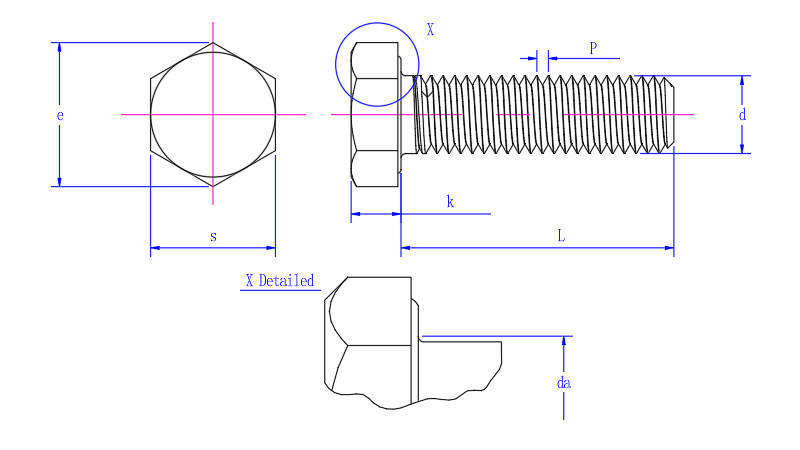

Full-Threaded Hexagon Head Bolts Dimensions Chart: Based on DIN 933
| (mm) | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 |
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 |
| da max | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 24.4 | 26.4 |
| e min | 6.01 | 7.66 | 8.79 | 11.05 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 30.14 | 33.53 | 35.72 | 39.98 |
| k min | 1.88 | 2.68 | 3.35 | 3.85 | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.28 | 12.28 | 13.78 | 14.78 |
| k max | 2.12 | 2.92 | 3.65 | 4.15 | 5.45 | 6.56 | 7.68 | 8.98 | 10.18 | 11.72 | 12.72 | 14.22 | 15.22 |
| r min | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 |
| s max | 5.5 | 7 | 8 | 10 | 12 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | 36 |
| s min | 5.32 | 6.78 | 7.78 | 9.78 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.67 | 29.67 | 31.61 | 35.38 |
Equivalent Standards:GB /T 5783 | ISO 4017 | DIN EN ISO 4017 | ANSI/ASME B 18.2.3.1M | EN 24017 | UNI 5739 | NF E 25-114 | IS 1364(-2)
Some of the standards listed above may be considered approximately equivalent. If there are differences in dimensions, please adhere to the original standard
