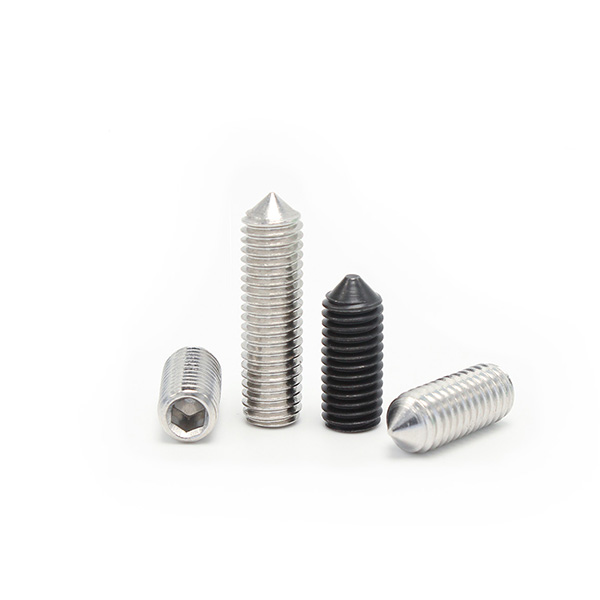

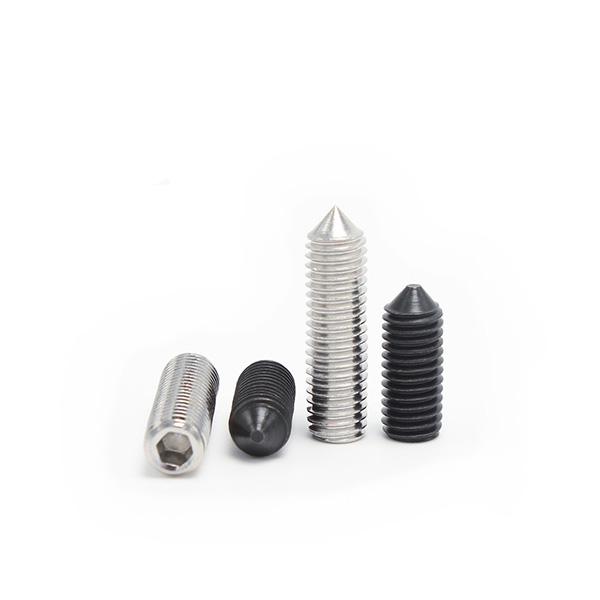

Hexagon Socket Cone Point Set Screws
The hexagon socket cone point set screw is a headless screw with a hexagonal drive system and tapered tip, which is especially suitable for fastening tasks requiring strong clamping forces.
Product Technical Parameters
| ●Material: Carbon Steel and Stainless Steel | |
| ●Surface Treatment: Galvanized, Nickel Plated, Black Oxide, Hot Dip Galvanizing, Dacromet | |
| ●Metric Strength Grades: 4.8, 8.8, 10.9, 12.9 | ●Imperial Strength Grades: 2, 5, 8 |
| ●Metric Thread Diameter: M3 ~ M24 | ●Imperial Thread Diameter: #5 ~ 1 |
| ●Metric Thread Length: 5 ~ 200
|
●Imperial Thread Length: 1/4 ~ 7
|
Products Categories
Get A Free Quote
Product Description of Hexagon Socket Cone Point Set Screws
- Function and use: Designed to achieve a firm fastening of the assembly to the shaft or assembly by inserting the cone point into the material, ensuring a significant gripping force to prevent sliding.
- Applications: Widely used in couplings, pulleys and gears in the mechanical, automotive, electronic and instrumentation industries, where accurate positioning and reliable fastening are key requirements.
- Needs solved: Ensure that components are stable during operation, avoid displacement or deviation from place, and demonstrate reliable performance in environments with high vibration conditions.
Wanhong fasteners offers high quality hexagon socket cone point set screws in a wide range of sizes and materials designed for a wide range of industrial applications.
Data Sheet of Hexagon Socket Cone Point Set Screws
Hexagon socket cone point set screws Dimensions Chart: Based on ISO 4027
| (mm) | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M16 | M20 | M24 |
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3 |
| e min | 1.73 | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 | 13.72 |
| s max | 1.545 | 2.045 | 2.56 | 3.071 | 4.084 | 5.084 | 6.095 | 8.115 | 10.115 | 12.142 |
| s min | 1.52 | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | 12.032 |
| t min | 1.2 | 1.5 | 2 | 2 | 3 | 4 | 4.8 | 6.4 | 8 | 10 |
Hexagon socket cone point set screws Dimensions Chart: Based on ASME/ANSI B18.3-Table 14-2017
| (inch) | #5 | #6 | #8 | #10 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 5/8 | 3/4 | 7/8 | 1 |
| P | 40 | 32 | 32 | 24 | 20 | 18 | 16 | 14 | 13 | 11 | 10 | 9 | 8 |
| s | 0.062 | 0.062 | 0.078 | 0.094 | 0.125 | 0.156 | 0.188 | 0.219 | 0.25 | 0.312 | 0.375 | 0.5 | 0.562 |
| t min | 0.08 | 0.08 | 0.09 | 0.1 | 0.125 | 0.156 | 0.188 | 0.219 | 0.25 | 0.312 | 0.375 | 0.5 | 0.562 |
