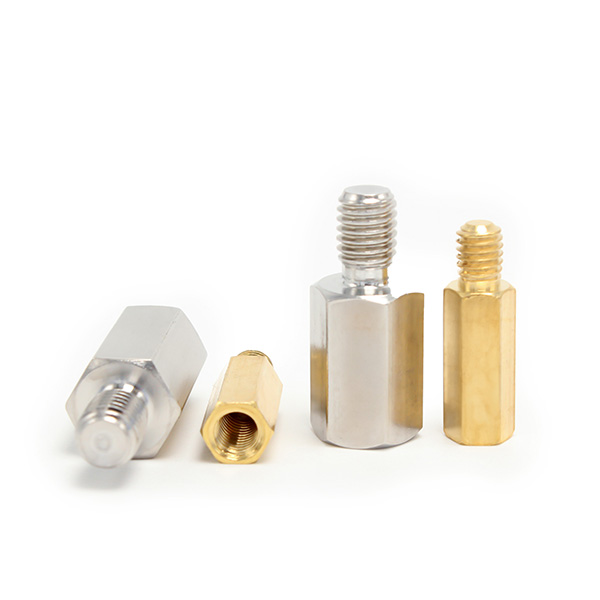

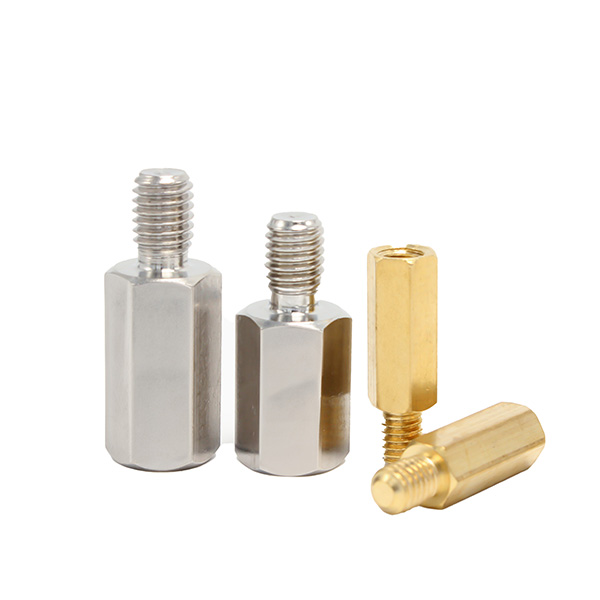

Hexagonal Single-Pass Isolation Column
Hexagonal single-pass isolation column for safety spacing and connection assembly, with hexagonal body, threaded rod at one end, threaded hole at the other end.
Product Technical Parameters
| ●Material: Carbon Steel and Stainless Steel |
| ●Surface Treatment: Galvanized, Nickel Plated, Black Oxide |
| ●Metric Strength Grades: 4.8 |
| ●Metric Thread Diameter: M3 ~ M10
|
Products Categories
Get A Free Quote
Product Description of Hexagonal single-pass isolation column
- Function and use: Isolation columns provide precise spacing of components. Screw the threaded rod end into the matching parts, and the threaded hole end ADAPTS the screw or bolt to ensure a stable connection.
- Applications: For stable separation and alignment in electronics, machinery and robotics, widely used in the assembly of circuit boards, panels and mechanical components.
- Needs solved: The isolation column ensures reliable insulation, structural support and easy assembly, precise spacing and connection of components, and protection from electrical and mechanical interference.
Wanhong Fasteners supply high quality hexagon single pass isolation column, various sizes and materials, wide range of application.
Data Sheet of Hexagonal Single-Pass Isolation Column

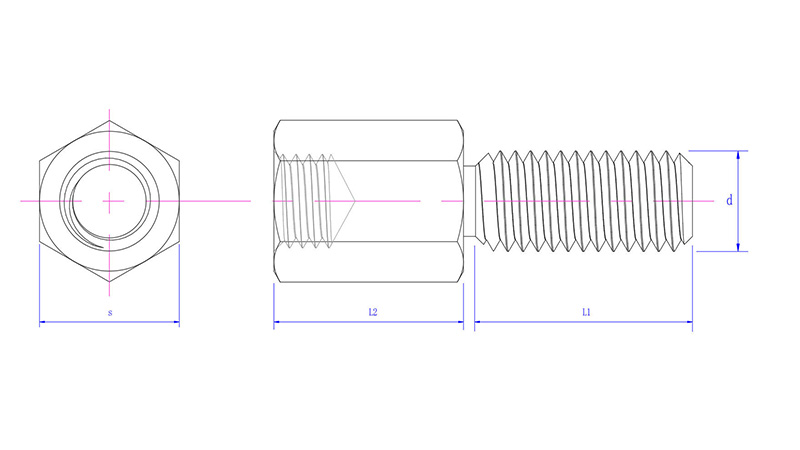

Hexagonal Single-Pass Isolation Column Dimensions Chart
| mm | M3 | M4 | M5 | M6 | M8 | M10 |
| s | 4.9 | 6 | 7 | 10 | 13 | 14 |
| L1 | 4|5|6 | 6 | 8 | 8|10 | 12|15 | 15 |
| L2 | 4~60 | 5~80 | 5~80 | 8~100 | 12~100 | 20~100 |
