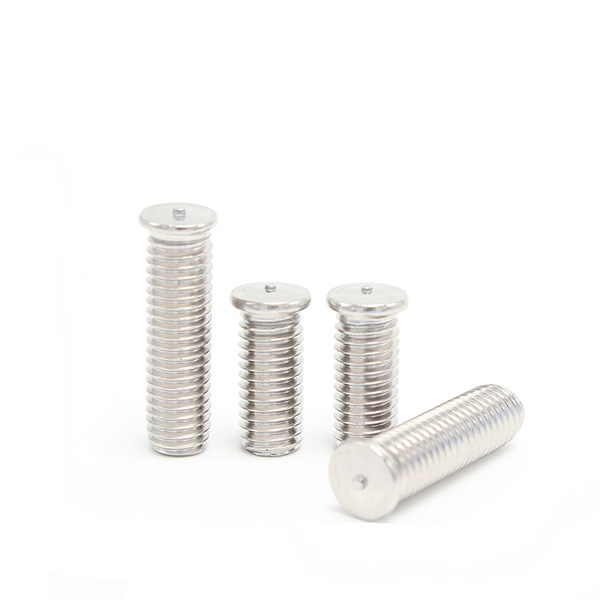

PT-Threaded Stud
The PT thread stud is a weldable stud with an external thread construction designed for welding arc studs to metal surfaces to create stable and durable threaded connection points.
Product Technical Parameters
| ●Material: Carbon Steel and Stainless Steel |
| ●Surface Treatment: Galvanized |
| ●Metric Strength Grades: 4.8 |
| ●Metric Thread Diameter: M3 ~ M8 |
| ●Metric Thread Length: 6 ~ 50
|
Products Categories
Get A Free Quote
Product Description of PT-Threaded Stud
- Function and Use: Designed for use in arc stud welding technology, these threaded studs can be welded directly to metal components to create a strong and long-lasting threaded connection without prior drilling or threading.
- Applications: In the construction, shipbuilding, automotive and mechanical industries, strong welded connections are widely used in fixed parts and assemblies to ensure structural stability and performance.
- Needs solved: They provide an instant thread tightening solution that eliminates the need for drilling and tapping. This not only saves time, but also ensures the integrity of the substrate structure, thereby maintaining its original strength.
Wanhong Fasteners offers PT threaded studs in a wide range of sizes and materials designed to meet the high standards of a wide range of industrial applications.
Data Sheet of PT-Threaded Stud
PT-Threaded stud Dimensions Chart: base on ISO 13918
| (mm) | M3 | M4 | M5 | M6 | M8 |
| P | 0.5 | 0.7 | 0.8 | 1 | 1.25 |
| dk max | 4.7 | 5.7 | 6.7 | 7.7 | 9.2 |
| dk min | 4.3 | 5.3 | 6.3 | 7.3 | 8.8 |
| dp max | 0.68 | 0.73 | 0.83 | 0.83 | 0.83 |
| dp min | 0.52 | 0.57 | 0.67 | 0.67 | 0.67 |
| z max | 0.6 | 0.6 | 0.85 | 0.85 | 0.9 |
| z min | 0.5 | 0.5 | 0.75 | 0.75 | 0.8 |
| k max | 1.4 | 1.4 | 1.4 | 1.4 | 1.4 |
| k min | 0.7 | 0.7 | 0.8 | 0.8 | 0.8 |
| a max | 1.5 | 1.5 | 2 | 2 | 3 |
