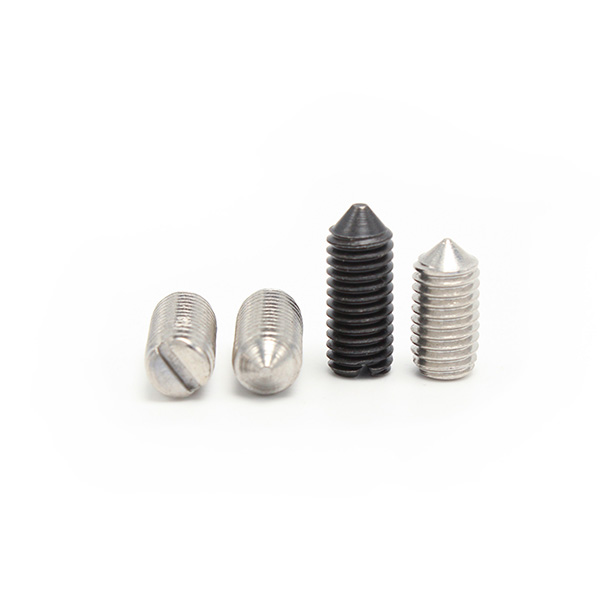

Slotted Cone Point Set Screws
Slotted cone end set screws provide easy adjustment thanks to their slotted drive characteristics, and their sharp cone point design ensures precise positioning and secure fastening in mechanical applications.
Product Technical Parameters
| ●Material: Carbon Steel and Stainless Steel | |
| ●Surface Treatment: Galvanized, Nickel Plated, Black Oxide | |
| ●Metric Strength Grades: 4.8 | ●Imperial Strength Grades: 2 |
| ●Metric Thread Diameter: M2.5 ~ M12 | ●Imperial Thread Diameter: #5 ~ 3/4 |
| ●Metric Thread Length: 6 ~ 50
|
●Imperial Thread Length: 1/8 ~ 5
|
Products Categories
Get A Free Quote
Product Description of Slotted Cone Point Set Screws
- Function and use: The tight fit of the cone point to the fitting ensures a strong holding force, while the slotted head allows easy installation and fine-tuning with a general purpose screwdriver.
- Applications: A wide range of applications in the field of mechanical, electronic and equipment assembly, including accurate alignment and reliable fastening, especially in the shaft ring, pulley and gear and shaft fixation play an important role.
- Needs addressed: In order to accurately position components and prevent them from displacing under operating stresses, it is essential to take effective measures to ensure that components are stable and perform at their best.
Wanhong Fasteners offers high performance slotted cone point set screws in a wide range of sizes and materials designed to meet the specific requirements of a wide range of industrial applications.
Data Sheet of Slotted Cone Point Set Screws

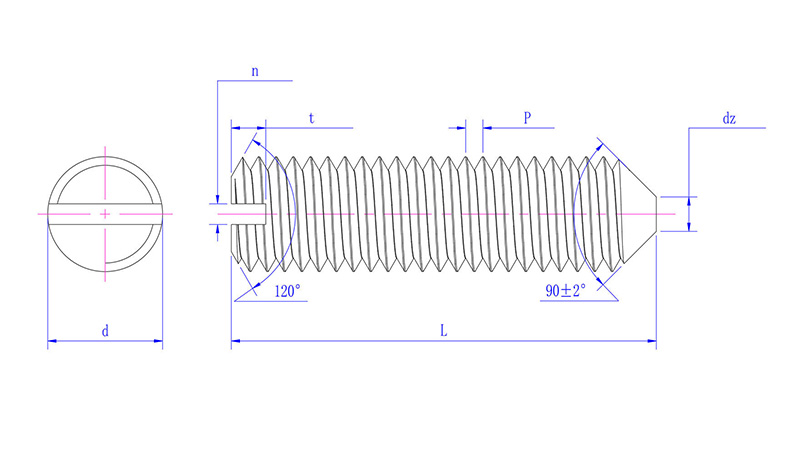

Slotted Cone Point Set Screws Dimensions Chart: Based on ISO 7434
| (mm) | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | M12 |
| P | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 |
| dz max | 0.25 | 0.3 | 0.35 | 0.4 | 0.5 | 1.5 | 2 | 2.5 | 3 |
| n min | 0.46 | 0.46 | 0.56 | 0.66 | 0.86 | 1.06 | 1.26 | 1.66 | 2.06 |
| n max | 0.6 | 0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.51 | 1.91 | 2.31 |
| t min | 0.72 | 0.8 | 0.96 | 1.12 | 1.28 | 1.6 | 2 | 2.4 | 2.8 |
| t max | 0.95 | 1.05 | 1.21 | 1.42 | 1.63 | 2 | 2.5 | 3 | 3.6 |
Slotted Cone Point Set Screws Dimensions Chart: Based on ASME/ANSI B18.6.2-5-Table 5
| (inch) | #5 | #6 | #8 | #10 | #12 | 1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 |
| P | 40|44 | 32|40|48 | 32|36 | 24|32 | 24|28 | 20|28|32 | 18|24|32 | 16|24|32 | 14|20|28 | 13|20|28 | 12|18|24 | 11|18|24 | 10|16|20 |
| n max | 0.026 | 0.028 | 0.032 | 0.035 | 0.042 | 0.049 | 0.055 | 0.068 | 0.076 | 0.086 | 0.096 | 0.107 | 0.134 |
| n min | 0.02 | 0.022 | 0.026 | 0.029 | 0.035 | 0.041 | 0.047 | 0.06 | 0.068 | 0.076 | 0.086 | 0.097 | 0.124 |
| t max | 0.036 | 0.04 | 0.046 | 0.053 | 0.061 | 0.068 | 0.083 | 0.099 | 0.114 | 0.13 | 0.146 | 0.161 | 0.193 |
| t min | 0.026 | 0.03 | 0.036 | 0.043 | 0.051 | 0.058 | 0.073 | 0.089 | 0.104 | 0.12 | 0.136 | 0.151 | 0.183 |
