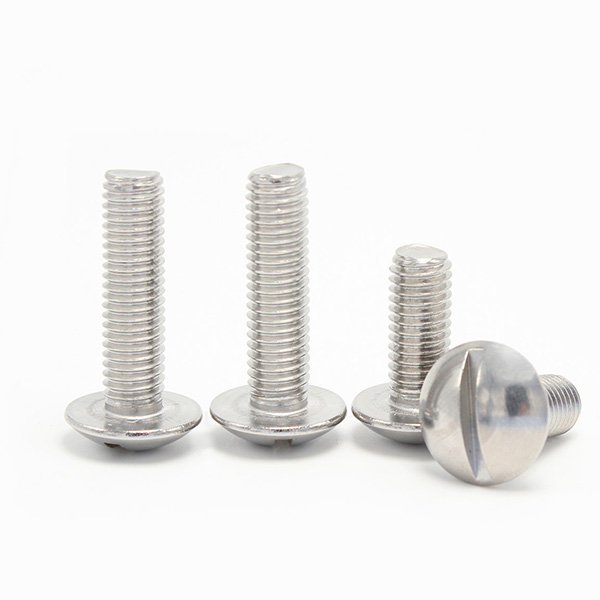

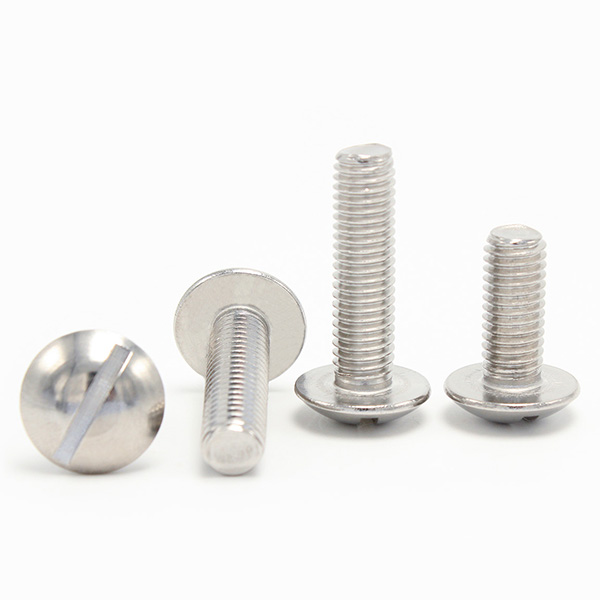

Slotted Truss Head Screws

The screw has a large slotted flat head that provides a larger bearing surface and can be easily installed or removed using a slotted head screwdriver.

Product Technical Parameters

●Material: Carbon Steel and Stainless Steel

●Surface Treatment: Galvanized, Nickel Plated, Black Oxide

●Imperial Strength Grades: 2

●Imperial Thread Diameter: #5 ~ 3/4

●Imperial Thread Length: 1/8 ~ 10

Get A Free Quote

PDF Download

Products Categories

Screw

Cross Recessed Screws

Slotted Screws

Hex Socket Screws

Set Screw

Weld Screws

T-Type Screw-Aluminum Profile

Self-tapping Screws

Tapping Screws

Drilling / Thread Cutting Screws

Bolts

Hex Bolts

Flanged Hex Bolts

Round Head Bolts

Square Head Bolts

T-Head Bolts

U-Bolts

Countersunk Head Bolts

Eye Bolts

Threaded Rod

Nuts

Hexagonal Nut

Lock Nut

Washers

Rivet

Solid Rivets

Tubular Rivets

Get A Free Quote

Product Description of Slotted Truss Head Screws

Function and use: The truss head design provides a larger surface area, distributes the load, and reduces the stress on the material to be fastened. The slotted design allows easy tightening and loosening with a slotted head screwdriver.
Applications: Widely used in woodworking, furniture assembly and applications requiring large screw heads to prevent pulling, such as fixing soft or thin materials.
Needs solved: These screws ensure firm fastening while minimizing damage to the material, preventing the screw head from sinking into the surface and ensuring a smooth appearance.

Wanhong Fasteners offers high quality slotted truss head screws in various sizes and materials to meet diverse industrial needs.

Data Sheet of Slotted Truss Head Screws

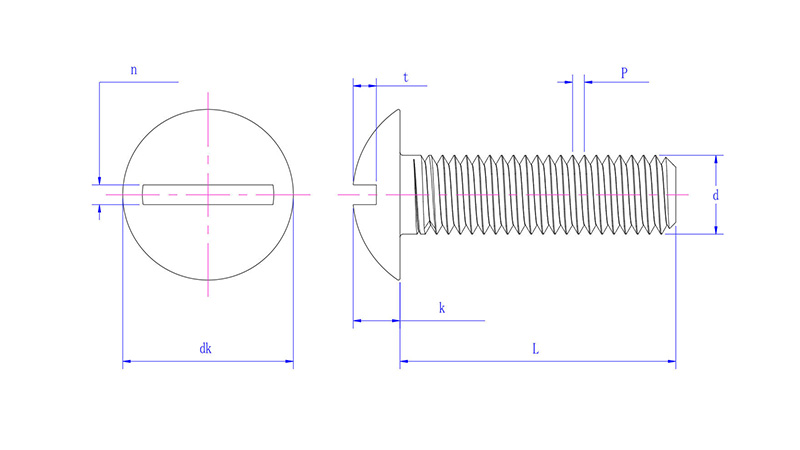

Slotted truss head screws Dimensions Chart: Based on ASME/ANSI B18.6.3-Table 24

(inch)	#5	#6	#8	#10	#12	1/4	5/16	3/8	7/16	1/2	9/16	5/8	3/4
P	40\|44	32\|40\|48	32\|36	24\|32	24\|28\|32	20\|28\|32\|26	18\|24\|32\|22	16\|24\|32\|20	14\|20\|28	13\|20\|28	12\|18\|24	11\|18\|24	10\|16\|20
dk max	0.289	0.321	0.384	0.448	0.511	0.573	0.698	0.823	0.948	1.073	1.198	1.323	1.573
dk min	0.272	0.303	0.364	0.425	0.487	0.546	0.666	0.787	0.907	1.028	1.149	1.269	1.511
k max	0.078	0.086	0.102	0.118	0.134	0.15	0.183	0.215	0.248	0.28	0.312	0.345	0.41
k min	0.066	0.074	0.088	0.103	0.118	0.133	0.162	0.191	0.221	0.25	0.279	0.309	0.368
n max	0.043	0.048	0.054	0.06	0.067	0.075	0.084	0.094	0.094	0.106	0.118	0.133	0.149
n min	0.035	0.039	0.045	0.05	0.056	0.064	0.072	0.081	0.081	0.091	0.102	0.116	0.131
t max	0.045	0.05	0.058	0.068	0.077	0.087	0.106	0.124	0.142	0.161	0.179	0.196	0.234
t min	0.034	0.037	0.045	0.053	0.061	0.07	0.085	0.1	0.116	0.131	0.146	0.162	0.182
