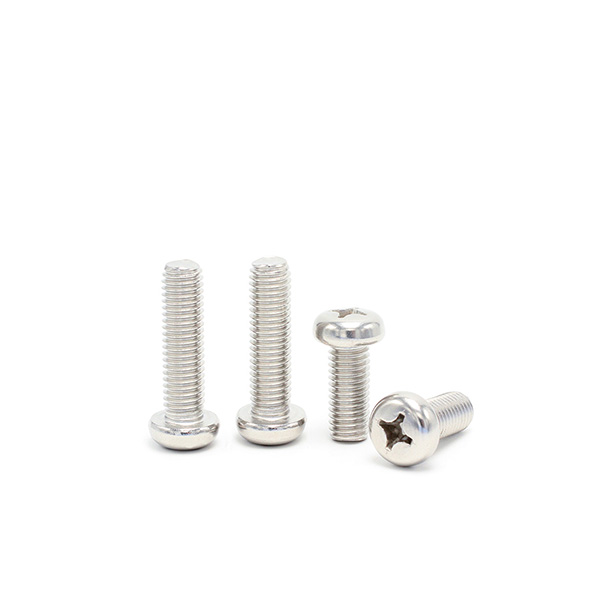

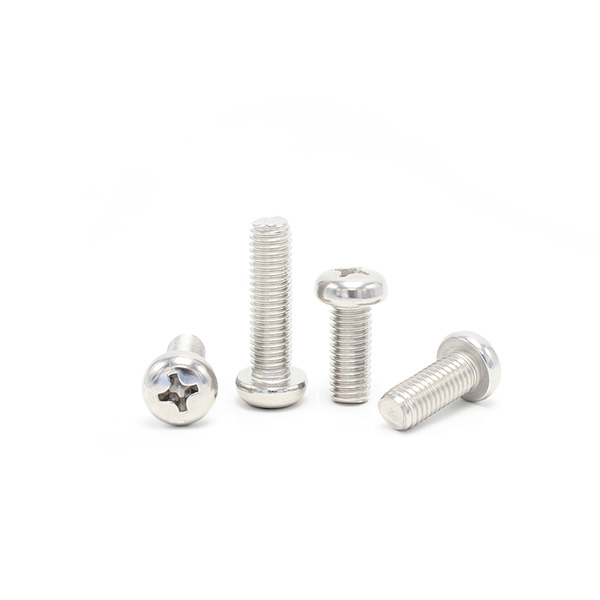

Small Pan Head Screws with Cross Recess
These screws are compact in design and driven with cross grooves for effective tightening and minimal surface protrusions.
Product Technical Parameters
| ●Material: Carbon Steel and Stainless Steel |
| ●Surface Treatment: Galvanized, Nickel Plated, Black Oxide, Hot Dip Galvanizing, Dacromet |
| ●Metric Strength Grades: 4.8 |
| ●Metric Thread Diameter: M3 ~ M8 |
| ●Metric Thread Length: 4 ~ 100
|
Products Categories
Get A Free Quote
Product Description of Small Pan Head Screws with Cross Recess
- Function and Use: Cross recessed small pan head screws are suitable for fastening components when space is limited. The small pan head has a low profile design and is fitted with a cross recessed for quick installation using a Phillips screwdriver.
- Applications: Widely used in electronics, electrical appliances and precision instruments, requiring compact, reliable and tight, without compromising design integrity.
- Needs solved: to ensure that it is firmly assembled in a small space, reduce interference, and take into account aesthetics and functions.
Wanhong Fasteners supply high quality cross recessed small pan head screws, various sizes and materials, suitable for various industries.
Data Sheet of Small Pan Head Screws with Cross Recess
Small pan head screws with cross recess Dimensions Chart: Based on GB/T 823
| (mm) | M3 | M3.5 | M4 | M5 | M6 | M8 |
| P | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 |
| da max | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 |
| dk max | 5.5 | 6 | 7 | 9 | 10.5 | 14 |
| dk min | 5.2 | 5.7 | 6.64 | 8.64 | 10.07 | 13.57 |
| k max | 2.15 | 2.45 | 2.75 | 3.45 | 4.1 | 5.4 |
| k min | 2.01 | 2.31 | 2.61 | 3.27 | 3.8 | 5.1 |
| r min | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 |
| No. | 2 | 2 | 2 | 2 | 3 | 3 |
| M | 3.5 | 3.8 | 4.1 | 4.8 | 6.2 | 7.7 |
| t max | 1.43 | 1.73 | 2.03 | 2.73 | 2.86 | 4.36 |
| t min | 0.86 | 1.15 | 1.45 | 2.14 | 2.26 | 3.73 |
