Stainless Steel Screws Selection Guide: Types, Grades & Applications

January 15, 2025

1. Introduction

Ever wondered why stainless steel screws were the deal in construction and manufacturing and even found a place in DIY projects? I personally have reached for them because they give strength and corrosion resistance that’s hard to find. This article goes deep into the world of stainless steel screws, their mechanical properties, the types of stainless steel they are made of, and where each of these finds its best application.

1.1 The Importance of Stainless Steel Screws

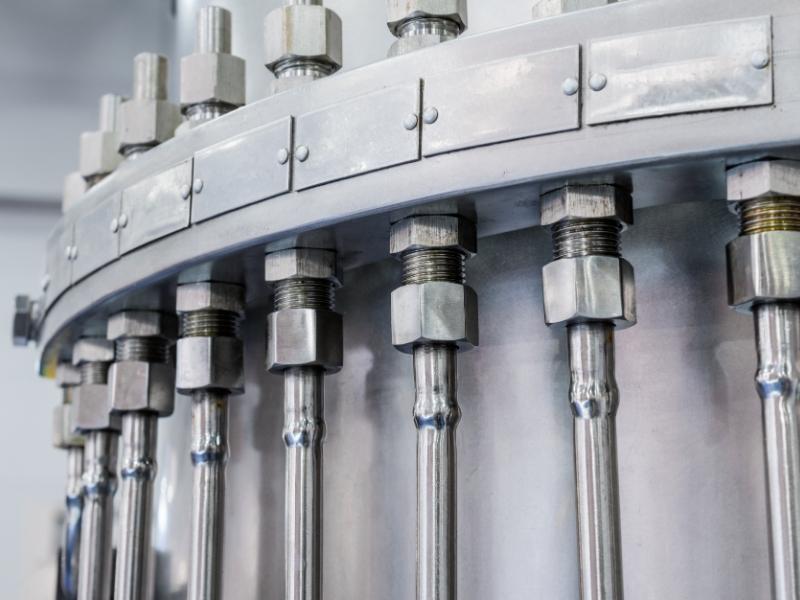

Stainless steel screws are used in many places because they are strong and resistant to rust. Be it an outside deck building or machinery assembly that may be exposed to harsh environments, they serve this purpose. They will last through time, saving you from future replacements and repairs.

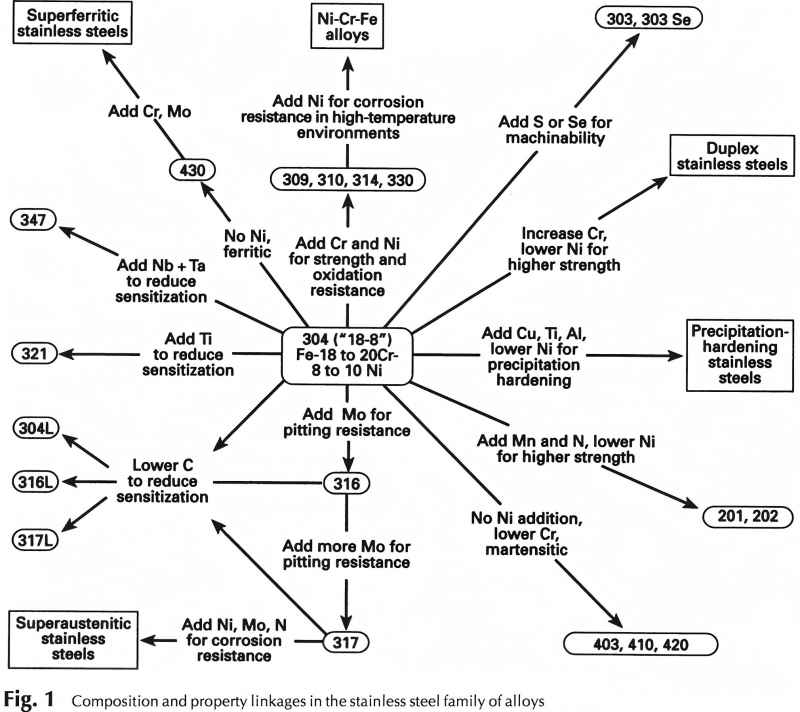

1.2 Overview of Stainless Steel Types

Stainless steel isn’t just a type of steel. In fact, there are several types, each with its own unique properties:

Austenitic Stainless Steel: Known for excellent corrosion resistance.
Ferritic Stainless Steel: Offers magnetic properties and good resistance.
Martensitic Stainless Steel: Provides high strength and hardness.
Duplex Stainless Steel: Combines the best of austenitic and ferritic properties.

Understanding these types helps in selecting the right screw for the job, ensuring safety and performance.

2. Understanding Stainless Steel Types

Let’s break down each type of stainless steel, including their specific grades, so you can see how they differ and where they excel.

2.1 Austenitic Stainless Steel

Austenitic stainless steel is the most commonly used type and for a good reason. It’s got great corrosion resistance and is pretty versatile.

2.1.1 Common Grades

304 Stainless Steel: Often called “18-8” stainless because it contains 18% chromium and 8% nickel. It’s widely used in screws due to its balance of strength and corrosion resistance.

Reference: 304 Stainless Steel Properties

316 Stainless Steel: Contains 16% chromium, 10% nickel, and 2% molybdenum. The molybdenum gives it better resistance to chloride environments, making it ideal for marine applications.

Reference: 316 Stainless Steel Overview

2.1.2 Characteristics and Composition

Composition: High levels of chromium and nickel, low carbon content.
Properties:
- Excellent corrosion resistance.
- Non-magnetic.
- Good formability and weldability.

I like using 316-grade screws when I’m working on projects near the coast because they hold up better against the salty air.

2.2 Ferritic Stainless Steel

Ferritic stainless steels are magnetic and generally have better stress corrosion cracking resistance.

2.2.1 Common Grades

430 Stainless Steel: Contains 16-18% chromium and is used in decorative applications where corrosion resistance isn’t as critical.

Reference: 430 Stainless Steel Details

409 Stainless Steel: Lower chromium content around 11%, often used in automotive exhaust systems.

Reference: 409 Stainless Steel Information

2.2.2 Characteristics and Composition

Composition: High chromium, low carbon, little to no nickel.
Properties:
- Magnetic.
- Moderate corrosion resistance.
- Good resistance to stress corrosion cracking.

Ferritic screws are a cost-effective option, but I usually avoid them in highly corrosive environments.

2.3 Martensitic Stainless Steel

Martensitic stainless steels are known for their high strength and hardness after heat treatment.

2.3.1 Common Grades

410 Stainless Steel: Contains 11.5-13.5% chromium and is hardenable through heat treatment. It’s used in applications requiring high strength and moderate corrosion resistance.

Reference: 410 Stainless Steel Specs

420 Stainless Steel: Contains higher carbon content than 410, offering increased hardness but reduced corrosion resistance.

Reference: 420 Stainless Steel Summary

2.3.2 Characteristics and Composition

Composition: Moderate chromium, higher carbon content.
Properties:
- High strength and hardness.
- Magnetic.
- Lower corrosion resistance compared to other stainless steels.

When I need screws that can handle wear and tear, like in machinery parts, martensitic grades are my go-to.

2.4 Duplex Stainless Steel (Austenitic + Ferritic)

Duplex stainless steels combine the best properties of austenitic and ferritic steels.

2.4.1 Common Grades

2205 Duplex Stainless Steel: Composed of 22% chromium, 5-6% nickel, and 3% molybdenum. It offers high strength and excellent corrosion resistance.

Reference: Duplex 2205 Stainless Steel Data Sheet

2507 Super Duplex Stainless Steel: Contains 25% chromium, 7% nickel, and 4% molybdenum, providing even higher corrosion resistance and strength.

Reference: Super Duplex 2507 Details

2.4.2 Characteristics and Composition

Composition: Balanced mix of austenitic and ferritic structures, high chromium, moderate to high nickel, and added molybdenum.
Properties:
- High strength.
- Excellent resistance to pitting and stress corrosion cracking.
- Magnetic due to ferritic content.

Duplex screws are a good idea if you’re in environments like offshore platforms where the strength and the corrosion are critical.

3. Mechanical Properties of Stainless Steel Screws

Mechanical properties of the right stainless steel screw matter when you want to choose the best part. I’ve poured through specs on the material to ensure I choose screws that aren’t going to let me down when they count. Let’s dive into the key properties: It has tensile strength, yield strength, hardness, and corrosion resistance.

3.1 Tensile Strength

3.1.1 What Is Tensile Strength?

Tensile strength will be the maximum amount of tensile (stretching) stress that a material can bear without failing. This is how much force a screw can handle in pulling before snapping.

3.1.2 Importance in Screws

For screws, the high tensile strength they possess helps them in carrying heavy loads without breaking. Should you be building something that requires weight, then this is the material property that will give you just that.

3.1.3 Tensile Strength of Different Stainless Steel Grades

Let’s look at the tensile strengths of some common stainless steel grades used to make screws:

	Stainless Steel Grade	Tensile Strength (MPa)
Austenitic	Grade 304	515 – 750
Austenitic	Grade 316	515 – 750
Martensitic	Grade 410	480 – 655
Martensitic	Grade 420	700 – 850
Duplex	Grade 2205	620 – 880

References:

It is easy to see here that the Application of duplex grades like 2205 has higher tensile strength than austenitic grade. I gravitate towards duplex or martensitic screws when I need maximum strength.

3.2 Yield Strength

3.2.1 Understanding Yield Strength

The stress at which a material begins to deform permanently is Yield strength, it’s the point where the screw bends and doesn’t spring back.

3.2.2 Why Yield Strength Matters for Screws

Because of high yield strength, the screw can withstand higher loads before starting to deform. Applications where the screw needs to maintain its shape when the stress is applied is critical.

3.2.3 Yield Strength Comparison Among Grades

Here’s a comparison of yield strengths:

	Stainless Steel Grade	Yield Strength (MPa)
Austenitic	Grade 304	205
Austenitic	Grade 316	205
Martensitic	Grade 410	275
Martensitic	Grade 420	345
Duplex	Grade 2205	450

References:

You can notice how the yield strength of duplex stainless steel is much higher. When deformation risk is high, a grade like 2205 may be optimal for an application.

3.3 Hardness

3.3.1 Defining Hardness

The non-volatile memory is characterized by its resistance to scratching and indentation i.e. hardness. The hardness of the screws determines how much it takes for the threads to wear.

3.3.2 Impact on Screw Performance

The harder screws are more resistant to wear and so are better suited to applications where the assembly and disassembly are repeated.

3.3.3 Hardness Levels in Various Grades

Let’s look at the Rockwell hardness (HRC) values:

	Stainless Steel Grade	Hardness (HRC)
Austenitic	Grade 304	B70 – B90
Austenitic	Grade 316	B79 – B95
Martensitic	Grade 410	C12 – C39
Martensitic	Grade 420	C50
Duplex	Grade 2205	C19 – C30

References:

Austenitic 400 grades are significantly softer than martensitic 420 grades. If I need screws to be durable against wear, I look at martensitic stainless steel.

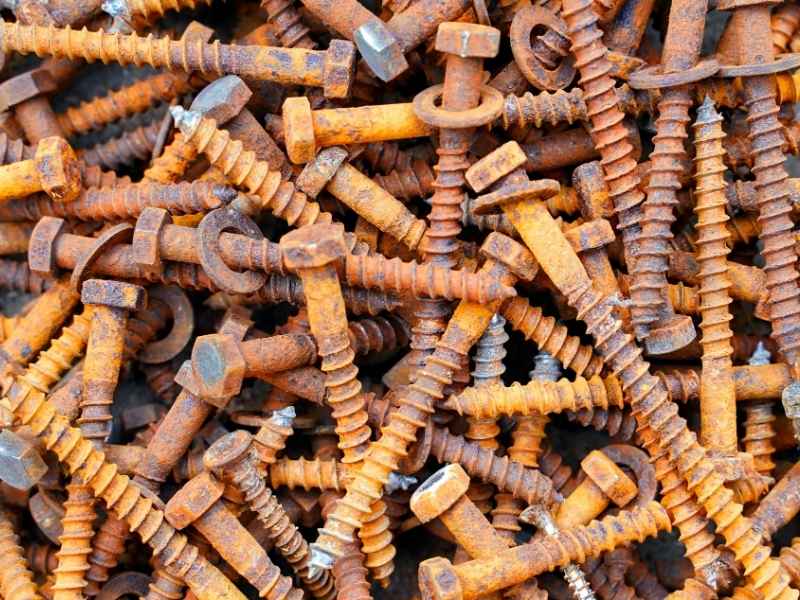

3.4 Corrosion Resistance

3.4.1 What Is Corrosion Resistance?

This is the concept of corrosion resistance, a material’s ability to avoid damage resulting from oxidization or some other chemical reaction. In other words, how easily does the screw resist rust?

3.4.2 The Role in Screw Longevity

For screws that have to face harsh environments, they require high corrosion resistance to maintain their integrity through a certain time. No one wants a rusty screw to fail in their project!

3.4.3 Corrosion Resistance Across Grades

Here’s how different grades stack up:

Stainless Steel Grade	Corrosion Resistance
Austenitic	Excellent
Grade 304	Very Good
Grade 316	Excellent
Martensitic	Moderate
Grade 410	Fair
Grade 420	Fair
Duplex	Excellent
Grade 2205	Outstanding

References:

Corrosion resistance is superior with austenitic and duplex grades. For marine, acidic environments, I tend to choose grade 316 or duplex 2205 screws.

3.4.4 Factors That Affect Corrosion Resistance

Several factors can influence corrosion resistance:

Chemical Composition: Elements like chromium and molybdenum enhance resistance.
Surface Finish: A smoother surface reduces the risk of corrosion.
Environmental Conditions: Exposure to chlorides, acids, or bases can increase corrosion risk.

It helps me make better choices in selecting screws for achieving the goals in challenging environments.

4. Comparative Analysis of Stainless Steel Types

After researching the mechanical properties of stainless steel screws, I finally understood that comparing the types side by side really makes the selection process much more manageable. This paper looks into the different types of stainless steel in a comparative light.

4.1 Composition Comparison Table

Stainless steel performance can be predicted in different environments by understanding the chemical composition. Here’s a table comparing the compositions:

Element (%)	Grade 304	Grade 316	Grade 410	Grade 420	Grade 2205
Chromium	18.0 – 20.0	16.0 – 18.0	11.5 – 13.5	12.0 – 14.0	22.0 – 23.0
Nickel	8.0 – 10.5	10.0 – 14.0	—	—	4.5 – 6.5
Molybdenum	—	2.0 – 3.0	—	—	3.0 – 3.5
Carbon	≤ 0.08	≤ 0.08	≤ 0.15	≤ 0.15	≤ 0.03
Manganese	≤ 2.0	≤ 2.0	≤ 1.0	≤ 1.0	≤ 2.0

References:

While looking at the table you can see how the molybdenum addition to Grade 316 and duplex 2205 particularly increases corrosion resistance in the chloride-rich environment.

4.2 Mechanical Properties Comparison Table

Let’s compare the mechanical properties to see how each grade performs under different conditions:

Property	Grade 304	Grade 316	Grade 410	Grade 420	Grade 2205
Tensile Strength (MPa)	515 – 750	515 – 750	480 – 655	700 – 850	620 – 880
Yield Strength (MPa)	205	205	275	345	450
Hardness (Rockwell)	B70 – B90	B79 – B95	C12 – C39	C50	C19 – C30
Corrosion Resistance	Very Good	Excellent	Moderate	Moderate	Outstanding

References:

This comparison shows the strength and corrosion resistance of duplex stainless steel for the demanding application.

5. Table of Common Stainless Steel Grades

The following table makes a more detailed comparison of various grades of commonly used stainless steels in terms of their main advantages and disadvantages, typical applications, suitable environments, and approximate material price per ton. It refers to the proper selection of the suitable grade for given demands according to mechanical properties, corrosion resistance, formability, and cost considerations.

Grade	Advantages	Disadvantages	Applications	Usage Environments	Material Prices (USD per ton)
201 (Austenitic)	-Lower cost due to reduced nickel content -Good mechanical properties -Good formability and corrosion resistance in mild environments	– Less corrosion resistance than 304 and 316 – Not suitable for harsh chemical environments – Susceptible to pitting in chloride environments	– Cookware – Household appliances – Automotive trim – Restaurant equipment	– Indoor applications – Mild environments – Non-corrosive atmospheres	Approx. 1,500−1,800
304 (Austenitic)	– Excellent corrosion resistance – Good formability and weldability – Widely available and versatile – Non-magnetic	– Less corrosion resistance in marine environments compared to 316 – More expensive than 201 and 430	– Kitchen sinks – Building facades – Chemical processing equipment – Fasteners and screws	– Indoor and outdoor – Mildly corrosive environments – Food processing	Approx. 2,000−2,500
316 (Austenitic)	– Superior corrosion resistance, especially in chlorides and marine environments – Good strength and durability – Good formability and weldability	– Higher cost due to molybdenum content – Less readily available than 304	– Marine applications – Chemical processing – Medical devices – Food and beverage equipment	– Marine environments – Highly corrosive environments – Chloride-rich areas	Approx. 2,500−3,000
410 (Martensitic)	– High strength and hardness – Good wear resistance – Heat treatable	– Lower corrosion resistance – Brittle when hardened – Limited weldability	– Cutlery – Valves and pumps – Fasteners requiring wear resistance	– Dry atmospheres – Mildly corrosive environments – Applications needing high strength	Approx. 1,800−2,200
420 (Martensitic)	– Very high hardness after heat treatment – Good resistance to wear – Can be polished to a mirror finish	– Low corrosion resistance – Not suitable for welding – Brittle in hardened condition	– Surgical instruments – Knife blades – Scissors – Springs	– Dry environments – Applications requiring hardness and wear resistance	Approx. 1,900−2,300
430 (Ferritic)	– Good corrosion resistance – Low cost – Good formability – Magnetic	– Less durable than 304 and 316 – Limited weldability – Not suitable for harsh environments	– Automotive trim – Household appliances – Decorative applications – Kitchen equipment	– Indoor applications – Mild environments	Approx. 1,500−1,800
2205 (Duplex)	– High strength – Excellent resistance to stress corrosion cracking – Good weldability – Outstanding corrosion resistance	– Higher cost – Less availability – Requires specialized handling	– Oil and gas industry – Chemical processing – Marine applications – Pressure vessels	– Highly corrosive environments – High-pressure applications – Chloride-rich conditions	Approx. 3,000−3,500

6. Conclusion

Choosing the right stainless steel screw is all about the material properties meeting the needs of one’s project. In my opinion, considering the operating environment, mechanical requirements, and cost helps in making the best choice.

From Grade 316 applications in the coastal buildings to the highly strength-draining applications where duplex stainless steel is used, understanding these subtleties ensures longevity and accomplishment in the application.

Keep in mind, that it’s all about the balance of performance and practicality. Feel free to ask material specialists for more information or refer back to this guide where necessary. Happy building!
