Introduction
Hey there! If you’ve ever dabbled in DIY projects or even assembled flat-pack furniture, then the puzzle of screw sizes is certainly something you’ll have confronted. Let me reassure you, that you are not alone. When you’re having to switch back and forth between Imperial and Metric measurements, the world of screws can seem like a maze. I’m sure a lot of us are there, staring at a heap of screws, wondering which goes where.
In this article, we try to iron out that confusion. We are going a little in-depth with screw sizing so you can be confident in picking the right screw for any project. No more guessing or mismatched parts, just straight advice to make life a little easier.
1. The Fundamentals of Screw Sizing
1.1. Why Screw Sizes Matter
Actually, using the right screw size is much more important than you might think. Just try to imagine trying to hang some heavy shelf with screws that are too small, it is frustrating when everything falls, and it would be dangerous. The right screw ensures the safety and durability of your project, be it a simple picture frame or some complicated piece of furniture.
The quality of anything assembled depends on finding screws compatible with materials and design. Using the wrong size of the screw can result in loose joints, stripped threads, or failure of the structure. So let’s have a look at what those measurements are all about.
1.2. Key Components of Screw Measurements
When you’re looking at screw sizes, there are three main things to consider:
- Diameter: This is the width of the screw shaft—the main body of the screw without the head. It’s crucial because it determines how well the screw will hold in the material.
- Length: This measures how long the screw is from the tip to where the head starts. Length affects how deep the screw will go into the material, impacting its holding power.
- Thread Count/Pitch: This refers to the distance between each thread. In Imperial units, it’s measured in threads per inch (TPI). In the Metric system, it’s the distance in millimeters between threads.
Understanding these components helps you pick a screw that fits perfectly, both literally and figuratively, for your project.
2. Imperial Screw Sizes
2.1. Understanding the Imperial System
The Imperial system has its roots in historical measurements used in the United Kingdom, but it’s now primarily used in the United States. It’s based on inches, feet, and fractions thereof. So, when you’re dealing with Imperial screws, expect measurements in inches and gauge numbers.

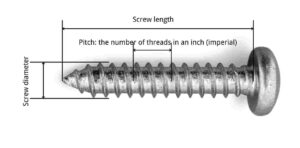

For example, you might see a screw labeled as “#8-32 x 1.5”. At first glance, it might look like a secret code, but don’t worry—we’ll decode it together.
2.2. Reading Imperial Screw Labels
Imperial screw sizes often use gauge numbers to indicate diameter. Common gauges include #4, #6, #8, #10, and so on. The larger the number, the larger the diameter.
The threads per inch (TPI) tell you how many threads there are in an inch of the screw. This affects how tightly the screw grips the material.
Deciphering an Imperial Screw Label:
- Example: “#8-32 x 1.5””
- #8: The gauge or diameter of the screw.
- 32: Threads per inch (TPI).
- 1.5”: Length of the screw in inches.
So, a “#8-32 x 1.5”” screw is a gauge 8 screw with 32 threads per inch and is 1.5 inches long.
2.3. Common Imperial Screw Types
Imperial screws come in various types, each suited for specific applications:
- Wood Screws: Designed with a coarse thread to grip wood securely.

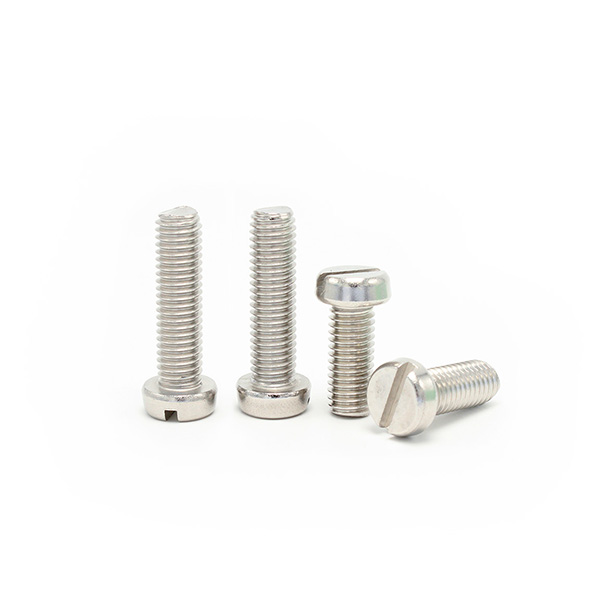

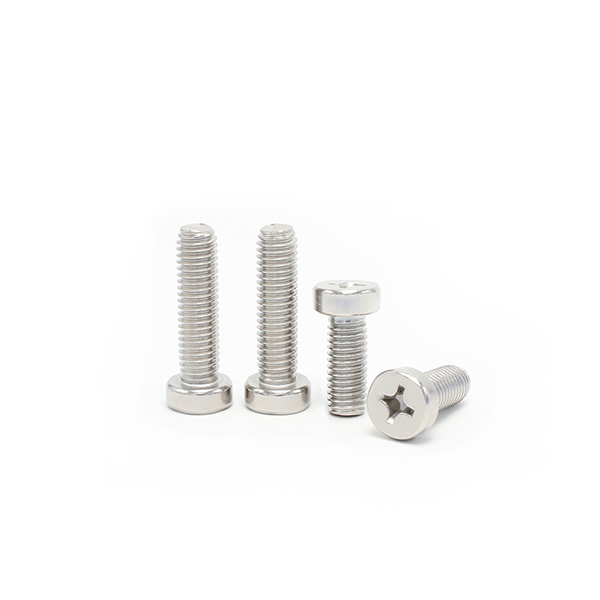

- Machine Screws: Used with nuts or tapped holes, featuring a uniform diameter along the shaft.
- Sheet Metal Screws: Crafted to fasten metal sheets, with sharp threads for cutting into metal.
Understanding the type of screw you need is just as important as knowing the size.
2.4. Advantages and Limitations
One advantage of the Imperial system is its widespread use in the U.S. If you’re working on older homes or machinery, you’ll likely encounter Imperial screws.
However, the Imperial system can be less intuitive due to its use of fractions and gauge numbers. It might be harder to calculate or convert sizes, especially if you’re more familiar with the Metric system.
3. Metric Screw Sizes
3.1. Understanding the Metric System
The Metric system is based on meters and is used almost worldwide. It’s decimal-based, which makes calculations and conversions more straightforward. Measurements are in millimeters (mm), centimeters (cm), and meters (m), making it simpler to understand and remember.
3.2. Reading Metric Screw Labels
Metric screw sizes are usually indicated with an ‘M’ followed by the diameter in millimeters.
Deciphering a Metric Screw Label:
- Example: “M6 x 1 x 20”
- M6: Screw diameter of 6 mm.
- 1: Thread pitch of 1 mm (distance between threads).
- 20: Length of the screw in mm.
So, an “M6 x 1 x 20” screw has a 6 mm diameter, a 1 mm thread pitch, and is 20 mm long.
3.3. Common Metric Screw Types
Just like Imperial screws, Metric screws come in various types:
- Metric Wood Screws: Designed for woodworking, with threads optimized for gripping wood fibers.
- Metric Machine Screws: Used in machinery and electronics, precise and uniform in diameter.

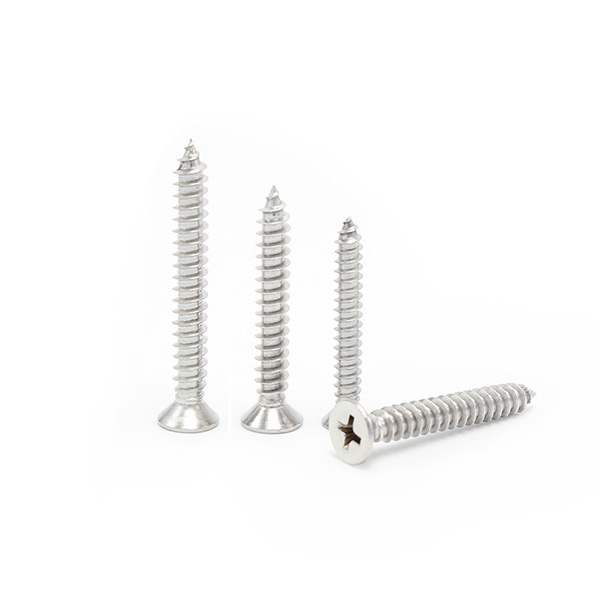

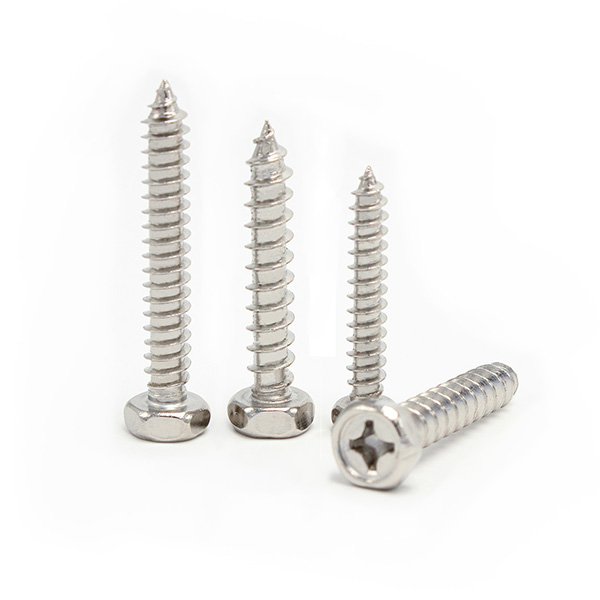

- Metric Self-Tapping Screws: Ideal for creating threads in metal or plastic.
3.4. Advantages and Limitations
The Metric system’s biggest advantage is its simplicity and global standardization. If you’re working on projects involving international components or instructions, Metric measurements are the norm.
However, if you’re in a country that primarily uses the Imperial system, finding Metric screws might be a bit more challenging, and you may need to convert measurements.
4. Comparing Imperial and Metric Screw Sizes
So, you’ve got a mix of Imperial and Metric screws, and you’re wondering how they stack up against each other. Been there! Let’s break down how these two systems compare in diameter, thread measurements, and length so that you can find the equivalencies and make your choice for the best application in your projects.
4.1. Diameter Comparisons
Understanding Screw Diameters
The diameter is the most important factor in any screw, as this dictates how a screw will fit and hold in a material. Imperial screws use a gauge number; metric screws use a direct measurement in millimeters.
Below follows the handy table which compares the usual Imperial screw gauges to their nearest Metric equivalents:
Screw Diameter Comparison Table
| Screw Size | Inch Decimal | Nearest Fraction | Metric Equivalent |
| #0 | 0.060 in. | 1/16″ | 1.52 mm |
| #1 | 0.073 in. | 5/64″ | 1.85 mm |
| #2 | 0.086 in. | 3/32″ | 2.18 mm |
| #3 | 0.099 in. | 7/64″ | 2.51 mm |
| #4 | 0.112 in. | 7/64″ | 2.84 mm |
| #5 | 0.125 in. | 1/8″ | 3.18 mm |
| #6 | 0.138 in. | 9/64″ | 3.51 mm |
| #8 | 0.164 in. | 5/32″ | 4.17 mm |
| #10 | 0.190 in. | 3/16″ | 4.83 mm |
| #12 | 0.216 in. | 7/32″ | 5.49 mm |
| #14 | 0.250 in. | 1/4″ | 6.35 mm |
| US | Metric |
| 1/16″ | 1.59 mm |
| 1/8″ | 3.18 mm |
| 3/16″ | 4.76 mm |
| 1/4″ | 6.35 mm |
| 5/16″ | 7.94 mm |
| 3/8″ | 9.53 mm |
| 7/16″ | 11.11 mm |
| 1/2″ | 12.70 mm |
| 9/16″ | 14.29 mm |
| 5/8″ | 15.88 mm |
| 11/16″ | 17.46 mm |
| 3/4″ | 19.05 mm |
| 7/8″ | 22.23 mm |
| 1″ | 25.40 mm |
Tips:
- A #8 screw (0.164 inches in diameter) is roughly equivalent to a 4.2 mm Metric screw.
- Remember, these are approximate equivalents. Always check if the screw fits properly before use.
4.2. Thread Count vs. Thread Pitch
Threads Per Inch (TPI) vs. Thread Pitch
Thread density is specified by Imperial screws as Threads Per Inch (TPI) and by Metric screws as thread pitch, the distance between threads measured in millimeters.
Converting Between TPI and Thread Pitch
To compare TPI and thread pitch, you can use this formula:
- Thread Pitch (mm) = 25.4 mm (1 inch) ÷ TPI
Example:
- Imperial Screw: #10-24 (24 TPI)
- Thread Pitch = 25.4 mm ÷ 24 = 1.058 mm
- Metric Screw: M5 x 1.0
- Thread Pitch = 1.0 mm
So, a #10-24 screw and an M5 x 1.0 screw have similar thread spacing.
Important: Despite similar thread pitches, Imperial and Metric threads have different angles and profiles, so they are not interchangeable.
4.3. Length Comparisons
Understanding Screw Lengths
Screw length in the Imperial system is measured in inches, while in the Metric system, it’s in millimeters.
Quick Conversion Reference
- 1 inch = 25.4 millimeters
- 1 millimeter = 0.03937 inches
Length Conversion Table
| US | Metric | US | Metric | |
| 1/16″ | 1.59 mm | 1-3/8″ | 34.93 mm | |
| 1/8″ | 3.18 mm | 1-1/2″ | 38.10 mm | |
| 3/16″ | 4.76 mm | 1-5/8″ | 41.28 mm | |
| 1/4″ | 6.35 mm | 1-3/4″ | 44.45 mm | |
| 5/16″ | 7.94 mm | 1-7/8″ | 47.63 mm | |
| 3/8″ | 9.53 mm | 2″ | 50.80 mm | |
| 7/16″ | 11.11 mm | 2-1/4″ | 57.15 mm | |
| 1/2″ | 12.70 mm | 2-1/2″ | 63.50 mm | |
| 9/16″ | 14.29 mm | 2-3/4″ | 69.85 mm | |
| 5/8″ | 15.88 mm | 3″ | 76.20 mm | |
| 11/16″ | 17.46 mm | 3-1/4″ | 82.55 mm | |
| 3/4″ | 19.05 mm | 3-1/2″ | 88.90 mm | |
| 7/8″ | 22.23 mm | 3-3/4″ | 95.25 mm | |
| 1″ | 25.40 mm | 4″ | 101.6 mm | |
| 1-1/4″ | 31.75 mm |
Tips for Accurate Length Measurement:

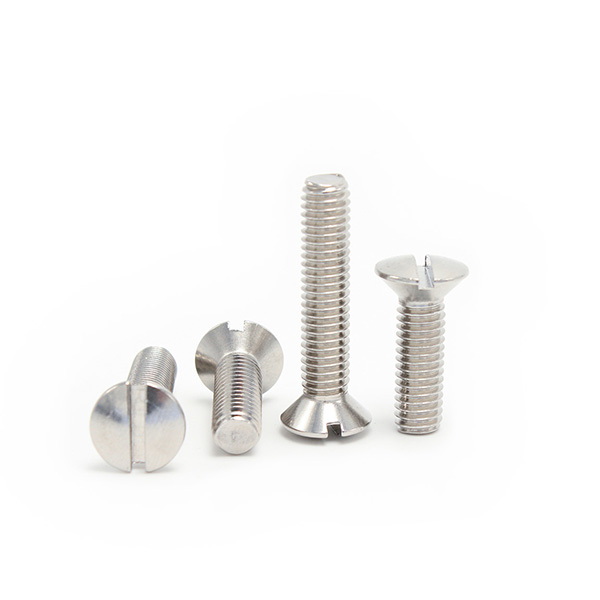

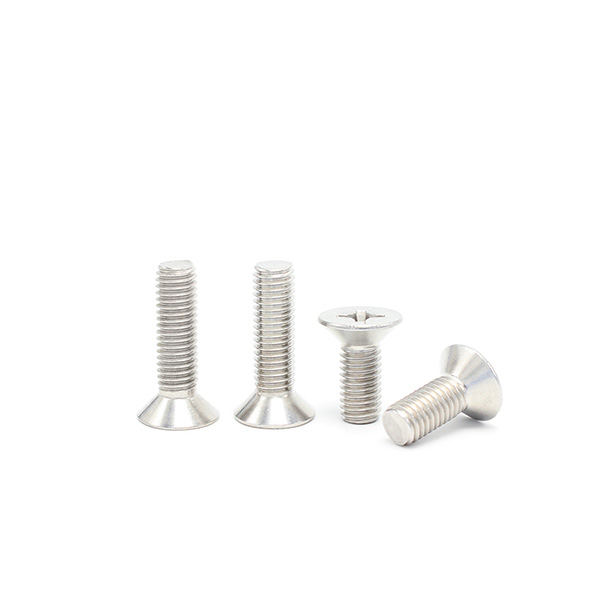

- For flat-head screws, measure the entire length, including the head.
- For pan-head and round-head screws, measure from under the head to the tip.
5. How to Convert Between Imperial and Metric Sizes
I’ve been in that aisle at the hardware store, trying to figure out if the screws in my hand are the right size. Converting between Imperial and Metric sizes doesn’t have to be a headache. Here’s how you can do it smoothly.
5.1. Conversion Formulas
Converting Diameters
- From Inches to Millimeters:
- mm = inches × 25.4
- From Millimeters to Inches:
- inches = mm ÷ 25.4
Example:
- Imperial Diameter: 0.164 inches (for a #8 screw)
- mm = 0.164 × 25.4 ≈ 4.17 mm
Converting Lengths
Use the same formulas as diameter conversion.
Converting Thread Measurements
- Thread Pitch (mm) = 25.4 ÷ TPI
- TPI = 25.4 ÷ Thread Pitch (mm)
Example:
- Imperial Thread: 32 TPI
- Thread Pitch = 25.4 ÷ 32 ≈ 0.7938 mm
- Metric Thread Pitch: 0.8 mm
- TPI = 25.4 ÷ 0.8 ≈ 31.75 TPI
5.2. Practical Conversion Tips
Rounding and Standard Sizes
When converting, you’ll often get numbers that aren’t standard screw sizes. In such cases:
- Round to the nearest standard size that’s available.
- Check standard screw size charts to find the closest match.
Awareness of Tolerances
While small differences might be okay for some projects, they can cause problems in others.
- For general DIY projects: Slight size variations are usually acceptable.
- For precision work: Always use the exact size to avoid issues.
Testing the Fit
Before fully committing:
- Test the screw in a scrap piece or inconspicuous area.
- Ensure that it threads smoothly without forcing.
5.3. Useful Conversion Tools
Online Conversion Calculators
- Engineering Toolbox Screw Conversion
- Website: Engineering Toolbox
- Features: Tables and calculators for Imperial and Metric sizes.
Physical Tools
- Screw Gauges and Thread Checkers
- Use these tools to physically measure screws.
- Available at most hardware stores or online.
Printable Conversion Charts
- Keep a printed chart in your workshop or toolbox.
- Downloadable from PDF <Metric and imperial rulers>.
6. Tips for Selecting the Right Screw Size
All right, let’s get practical. When there are so many different screw sizes, it can be difficult to find the right size. Luckily, I have some tips for you to help make the best choice for your project.
6.1. Consider the Material You’re Working With
There are different types of screws for different materials.
- Wood Projects: Wood screws are used because they have coarser threads thus making more efficient use of wood fibers.
- Metal Assemblies: Machine screws or self-tapping metal screws that cut into metal are a good choice.
- Drywall Installations: Drywall screws are thinner and sharper to penetrate without damaging the drywall.
Tip: Always choose a screw type specifically designed for your material to ensure a secure hold.
6.2. Match the Screw Length to the Material Thickness
A common rule is that the screw should penetrate at least half the thickness of the bottom material but not so long that it pokes through the other side.
Example:
- If you’re joining a 1-inch thick board to a 2-inch thick board, a screw length of 1.5 inches would be appropriate.
6.3. Choose the Right Diameter
The screw diameter affects the strength and holding power.
- Light Loads: Use smaller diameters like #6 (Imperial) or M3 (Metric) for lightweight projects.
- Heavy Loads: For structural support, larger diameters like #10 or M6 provide more strength.
Tip: When in doubt, a slightly thicker screw can offer better support but ensure it doesn’t split the material.
6.4. Don’t Forget the Thread Type
Thread pitch and type matter, especially when matching screws to pre-threaded holes.
- Coarse Threads: Better for softer materials like wood and plastic.
- Fine Threads: Ideal for metal or hard plastics, providing more threads per inch or millimeter.
Insight: Using the wrong thread type can result in weak joints or damaged threads.
7. Common Mistakes and How to Avoid Them
We all make mistakes—it’s part of the learning process. But if you can skip some common pitfalls, you’ll save time and frustration.
7.1. Mixing Up Imperial and Metric Screws
Mistake: Accidentally using an Imperial screw in a Metric hole or vice versa.
Consequence: This can damage threads, making future repairs difficult.
Solution: Keep Imperial and Metric screws in separate, clearly labeled containers. Double-check measurements before installation.
7.2. Over-Tightening Screws
Mistake: Applying too much torque, causing the screw or material to strip.
Consequence: Weakens the joint and can ruin the screw or material.
Solution: Use a torque-limited screwdriver or drill set. Stop tightening once the screw is flush and secure.
7.3. Not Drilling Pilot Holes
Mistake: Driving screws directly into hard materials without a pilot hole.
Consequence: May split the wood or make screw insertion difficult.
Solution: Drill a pilot hole a little less than the screw’s minor diameter.
7.4. Using the Wrong Screw Length
Mistake: Selecting a screw which is either too short or too long for the material.
Consequence: A short screw is not secure enough, a long screw may stick out or damage structures underneath.
Solution: Measure the thickness of both materials you’re joining and pick the screw length to match.
7.5. Neglecting Corrosion Resistance
Mistake: Inserting screws which are not suitable for given environmental conditions.
Consequence: Rust or corrosion in screws can make a structure unsafe.
Solution: Use stainless steel or galvanized screws when fastening where the project or area is exposed to moisture or outdoors.
Conclusion
A little knowledge makes the screw world a lot less daunting, though. Knowing the different types of screws-Imperial and Metric-allows you to make good choices for any given project, be it huge or small.
Let’s recap the essential points:
- Understand Both Systems: Learn how to use Imperial and Metric measurements. 1 inch is 25.4 millimeters and that’s a game changer.
- Use Conversion Tools: If all else fails, don’t be afraid to use those calculators, smartphone apps, or conversion charts that let you figure out what size screw you need. Measure twice, screw once and it’s better too!
- Consider Material and Application: You should make sure you match the type and size of the screw to the material you are working with. No matter what material it is we speak of wood, metal, or drywall the right screw that is used makes all the difference.
- Avoid Common Pitfalls: Screw keepers allow you to keep screws organized, you can avoid mixing up systems unintentionally, and drill pilots holes when needed.
- Invest in Quality: Good tools and screws are important to the job, not only because they make it easier, but also because they make it safer and last longer.
When you keep these in mind, you’ll tackle your projects confidently and precisely. The next time you’re standing in the hardware store aisle, you’ll feel equipped to choose exactly what you need without the guesswork.
Remember, every expert was once a beginner. The more you practice and familiarize yourself with these concepts, the more second nature they’ll become.
Grab that screwdriver and let’s go make your DIY dreams a reality!
